Dc Electronics Load
OEL85 Series DC Electronics Load
| Model | Total Power | Range (V/A) | Current Slope | Resolution (V/A) |
|---|---|---|---|---|
| OEL8511 | 200W | 0-150V / 20A | 0.01A/ms | 1mV / 1mA |
| OEL8511B | 200W | 0-300V / 20A | 0.01A/ms | 1mV / 1mA |
| OEL8511C | 200W | 0-600V / 20A | 0.01A/ms | 1mV / 1mA |
👉 Scroll horizontally to view full table

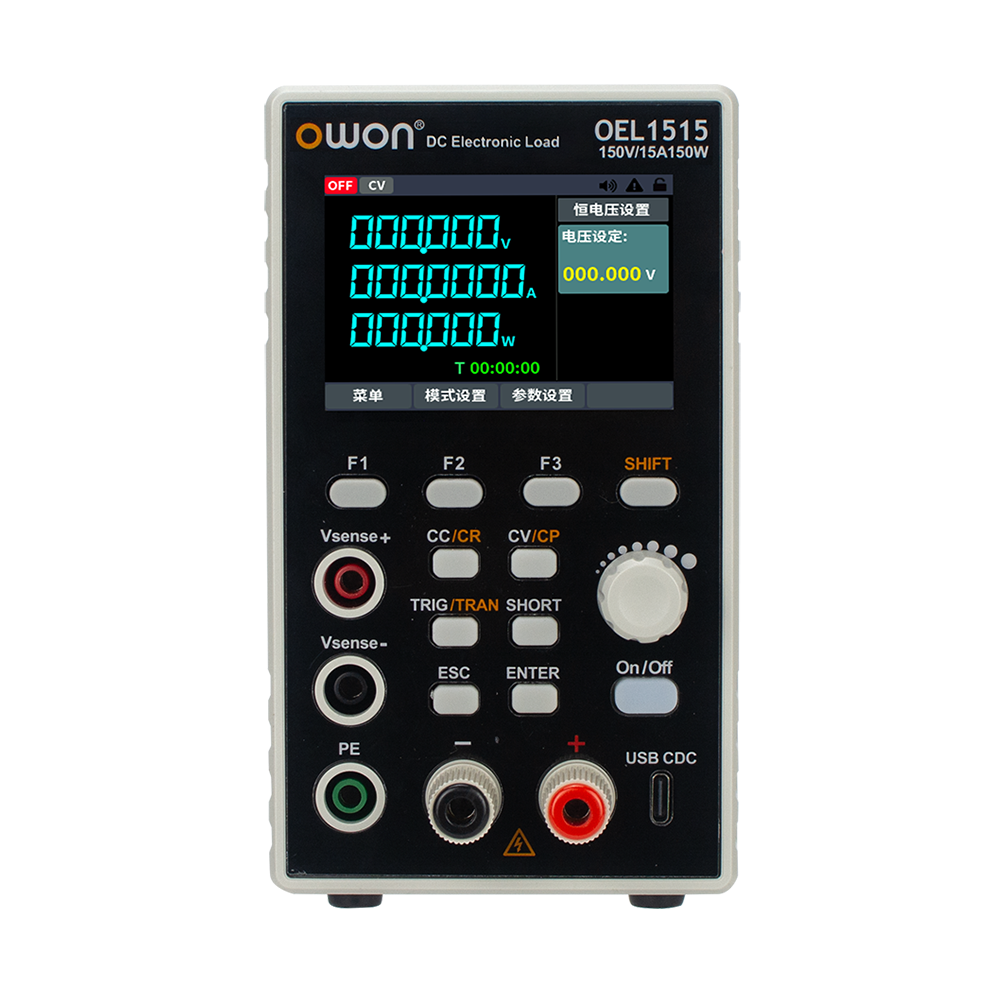

OEL15/30/60 Series DC Electronics Load
| Model | Total Power | Range (V / A) | Setting Resolution | Readback Resolution |
|---|---|---|---|---|
| OEL1515 | 150W | 150V / 15A | 1mV / 1mA | 1mV / 0.1mA |
| OEL1520 | 300W | 150V / 20A | 1mV / 1mA | 1mV / 0.1mA |
| OEL1530 | 300W | 150V / 30A | 1mV / 1mA | 1mV / 0.1mA |
👉 Scroll horizontally to view full table
Digital Power Meter
OWH9800 Series Power Meter
| Model | Measurement Mode | Measurement Range | Harmonic Analysis | Interface |
|---|---|---|---|---|
| OWH9811 | AC / AC+DC (1-phase) | 1000V / 20A | Support | RS232 |
| OWH9830 | AC / AC+DC (3-phase) | 1000V / 20A | Support | RS232 |
👉 Scroll horizontally to view full table
Power Modules
Half-bridge module
Full Bridge Module
Controller
SP2000 Rapid Control Prototyping System
DC Power Supply

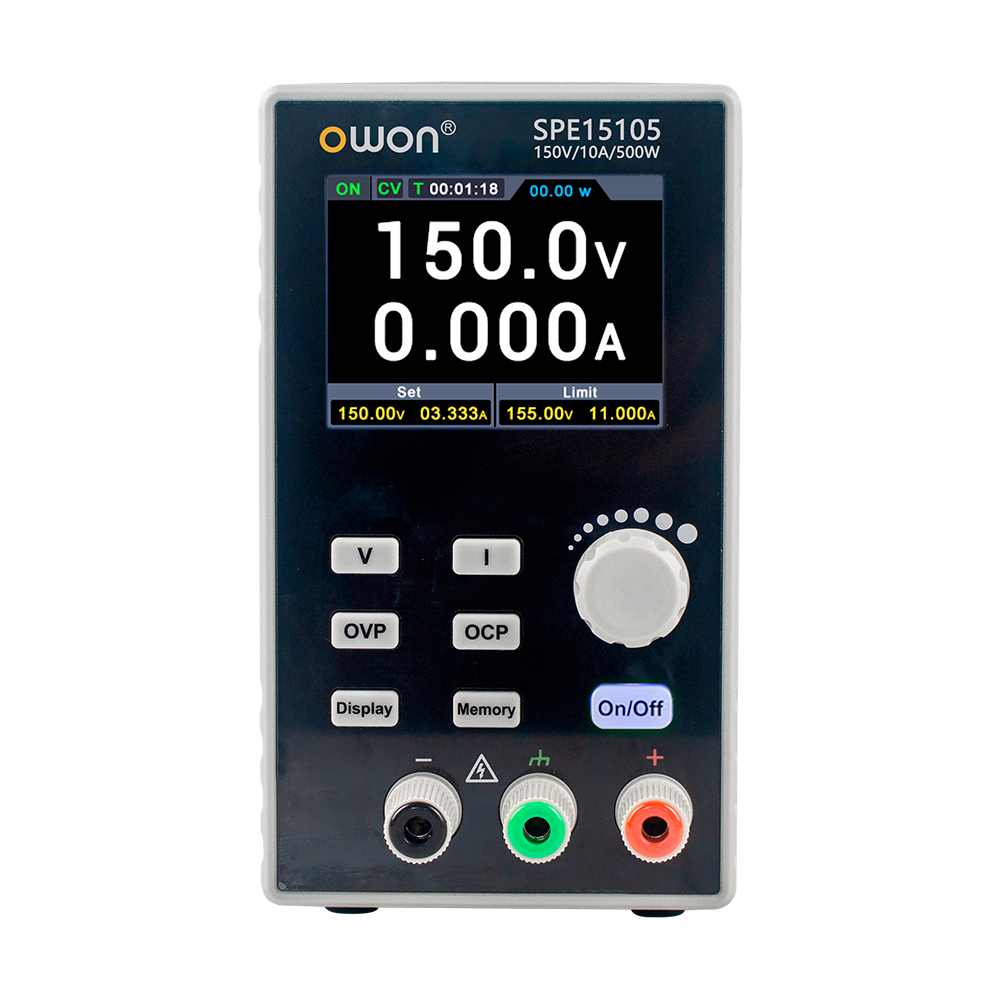

SPE Series High Voltage DC Power Supply
| Model | Output Power | Output Ranges | Channel | Resolution |
|---|---|---|---|---|
| SPE15054 | 400W | 0 – 150V/0 – 5A | 1 | 10mV/1mA |
| SPE15105 | 500W | 0 – 150V/0 – 10A | 1 | 10mV/1mA |
| SPE30054 | 400W | 0 – 300V/0 – 5A | 1 | 10mV/1mA |
| SPE30055 | 500W | 0 – 300V/0 – 5A | 1 | 10mV/1mA |
| SPE50024 | 400W | 0 – 500V/0 – 2A | 1 | 10mV/1mA |
| SPE50025 | 500W | 0 – 500V/0 – 2A | 1 | 10mV/1mA |
👉 Scroll horizontally to view full table

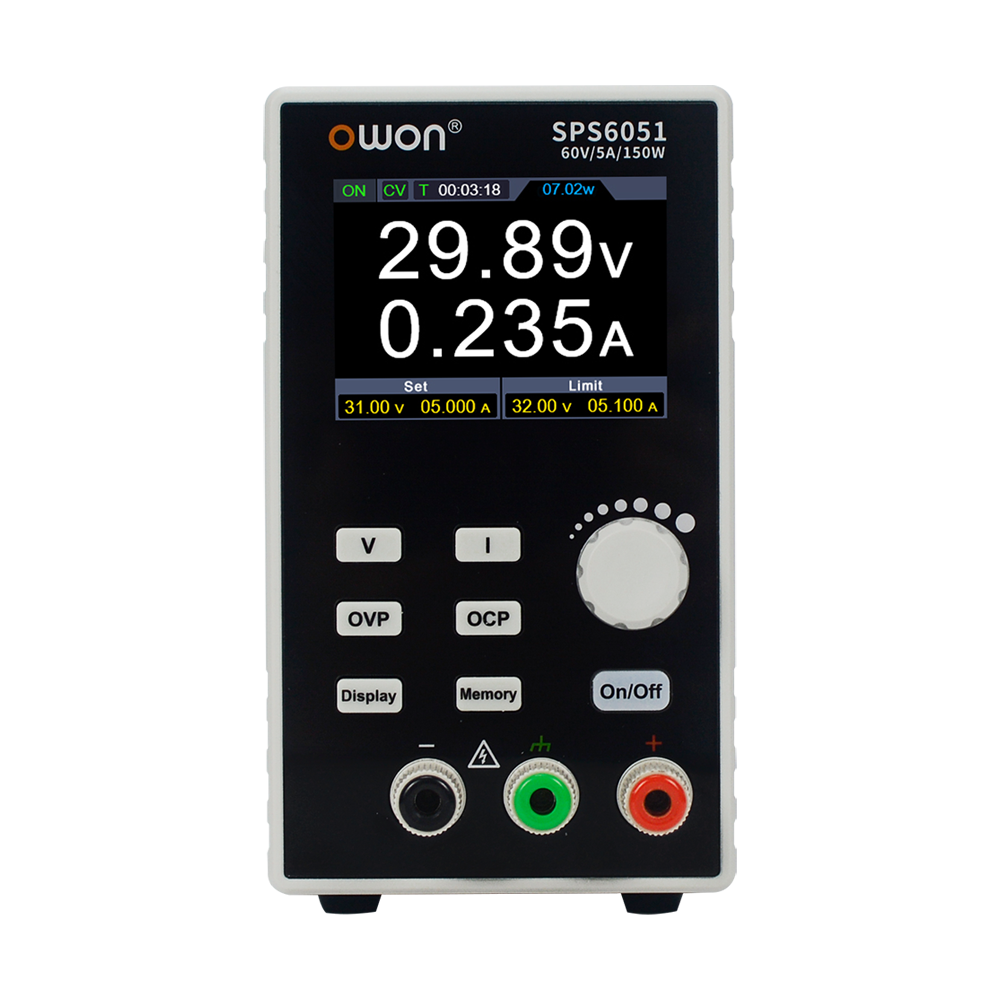

SPS Series Fanless Single Channel Programmable DC power supply
| Model No. | Output Power | Output Ranges | Output Resolution | Channel |
|---|---|---|---|---|
| SPS3051 | 150W | 0 – 30V/0 – 5A | 10mV/1mA | 1 |
| SPS6051 | 150W | 0 – 60V/0 – 5A | 10mV/1mA | 1 |
| SPS3081 | 120W | 0 – 30V/0 – 8A | 10mV/1mA | 1 |
| SPS6081 | 120W | 0 – 60V/0 – 8A | 10mV/1mA | 1 |
| SPS8081 | 120W | 0 – 80V/0 – 8A | 10mV/1mA | 1 |
👉 Scroll horizontally to view full table

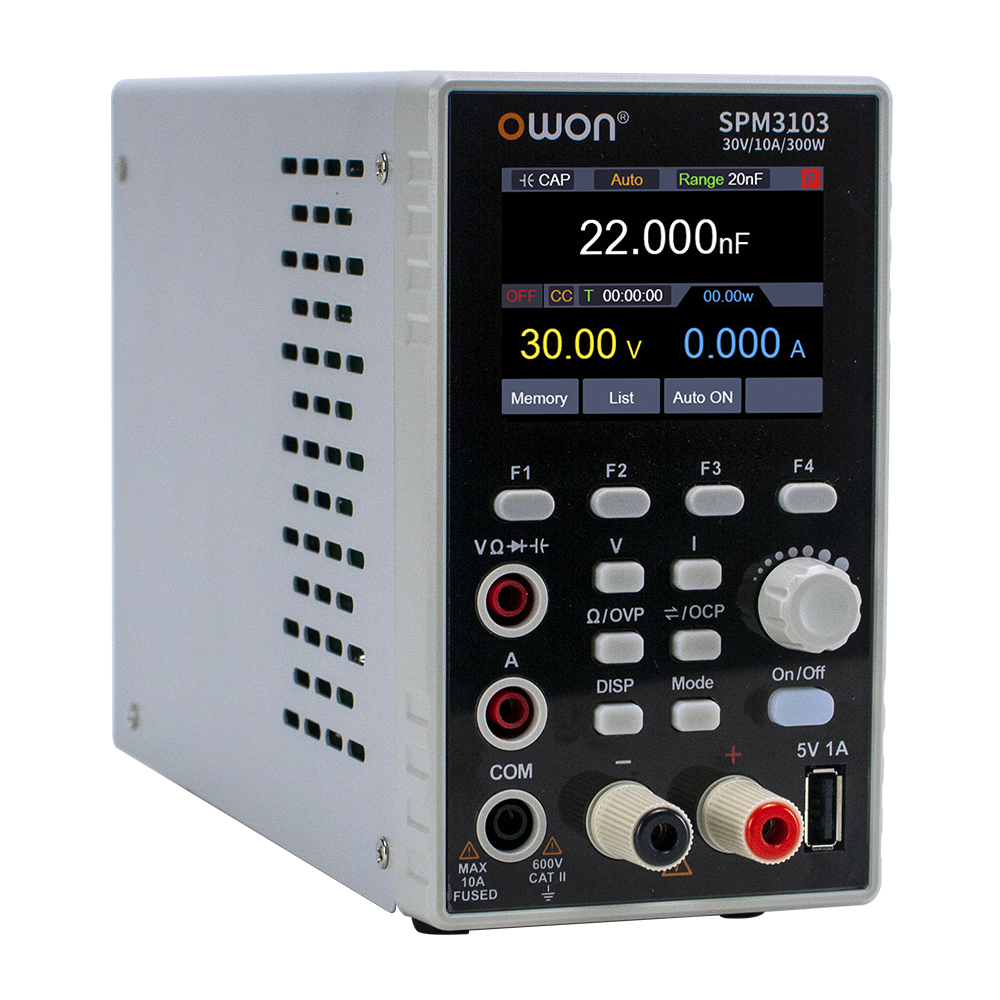

SPM Series 1 CH Power Multimeter
| Model | Output Range | Out put Power | Multimeter | Power resolution |
|---|---|---|---|---|
| SPM3051 | 30V/5A | 150W | 4 1/2 digits | 10mV/1mA |
| SPM6053 | 60V/5A | 300W | 4 1/2 digits | 10mV/1mA |
| SPM3103 | 30V/10A | 300W | 4 1/2 digits | 10mV/1mA |
| SPM6103 | 60V/10A | 300W | 4 1/2 digits | 10mV/1mA |
| SPM8104 | 80V/10A | 400W | 4 1/2 digits | 10mV/1mA |
| SPM8205 | 80V/20A | 500W | 4 1/2 digits | 10mV/1mA |
👉 Scroll horizontally to view full table
High Power Programmable DC Supply
OW67 Series High Power DC supply
| Model | Output Power | Output Voltage | Output Current | Settings Resolution |
|---|---|---|---|---|
| OWH67012 | 1.2KW | 0 -80V/150V/300V | 0-30A/20A/10A | 10mV/1mA |
| OWH67018 | 1.8KW | 0 -150V | 0-30A | 10mV/1mA |
| OWH67020 | 2KW | 0 -150V/300V/600V | 0-20A/10A/10A | 10mV/1mA |
| OWH67030 | 3KW | 0 -150V/300V/600V | 0-30A/15A/10A | 10mV/1mA |
👉 Scroll horizontally to view full table

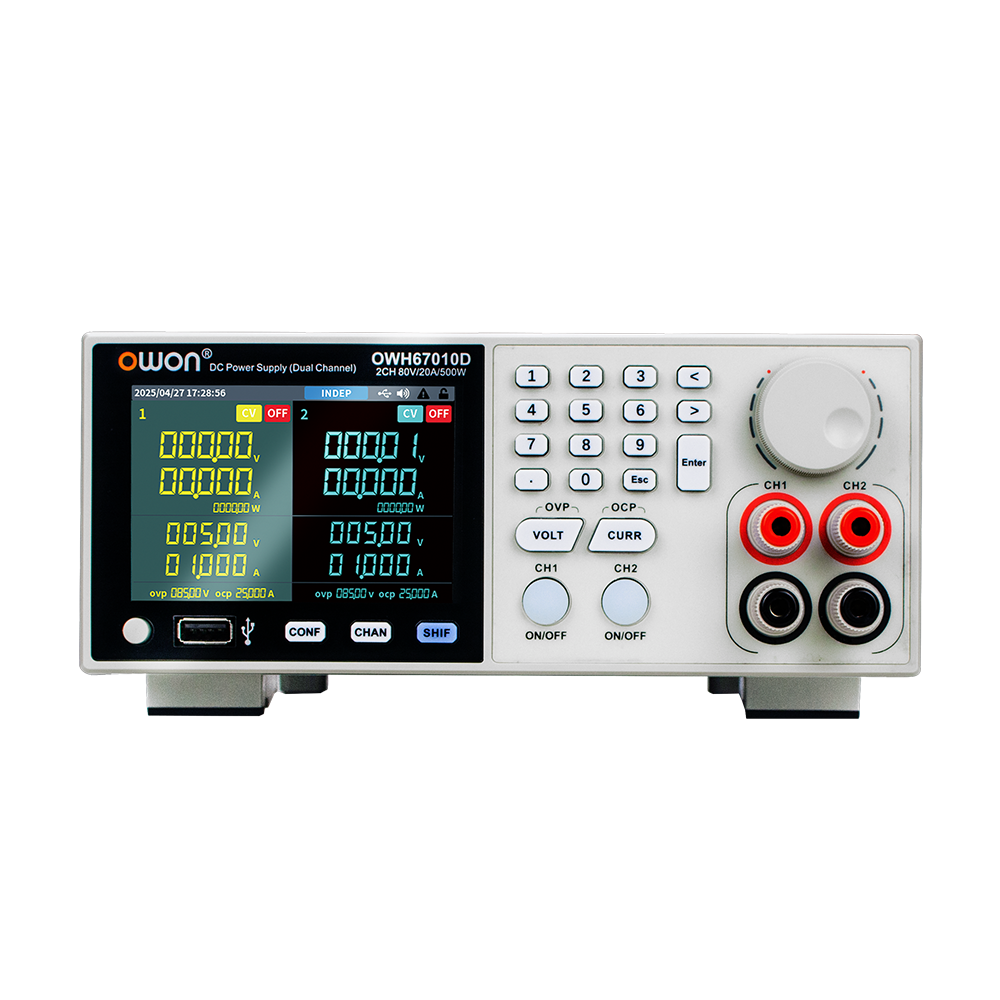

OW67D Series High Power DC supply
| Model | Output Power | Voltage / Current Range | Channel | Settings Resolution |
|---|---|---|---|---|
| OWH67010D-80 | 1000W | 80V / 20A | 2 | 10mV/1mA |
| OWH67060D-150 | 6000W | 150V / 30A | 2 | 10mV/1mA |
| OWH67060D-300 | 6000W | 300V / 15A | 2 | 10mV/1mA |
| OWH67060D-600 | 6000W | 600V / 10A | 2 | 10mV/1mA |
👉 Scroll horizontally to view full table

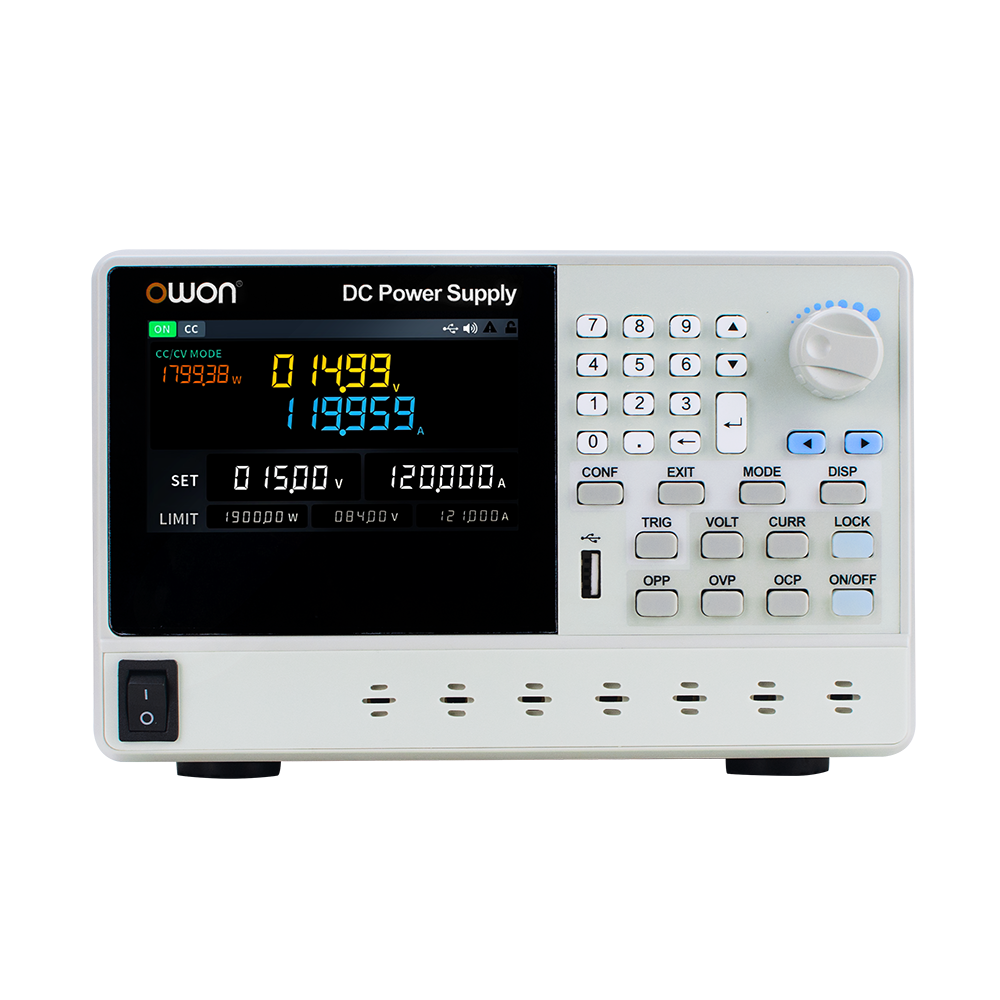

OWH80 Series DC Power supply
| Model | Output Power | Output Voltage | Output Current | Settings Resolution |
|---|---|---|---|---|
| OWH80120-1800 | 1800W | 0 – 80V | 0- 120A | 10mV/1mA |
| OWH8080-2000 | 2000W | 0 – 80V | 0- 80A | 10mV/1mA |
| OWH50120-1800 | 1800W | 0 – 50V | 0- 120A | 10mV/1mA |
👉 Scroll horizontally to view full table

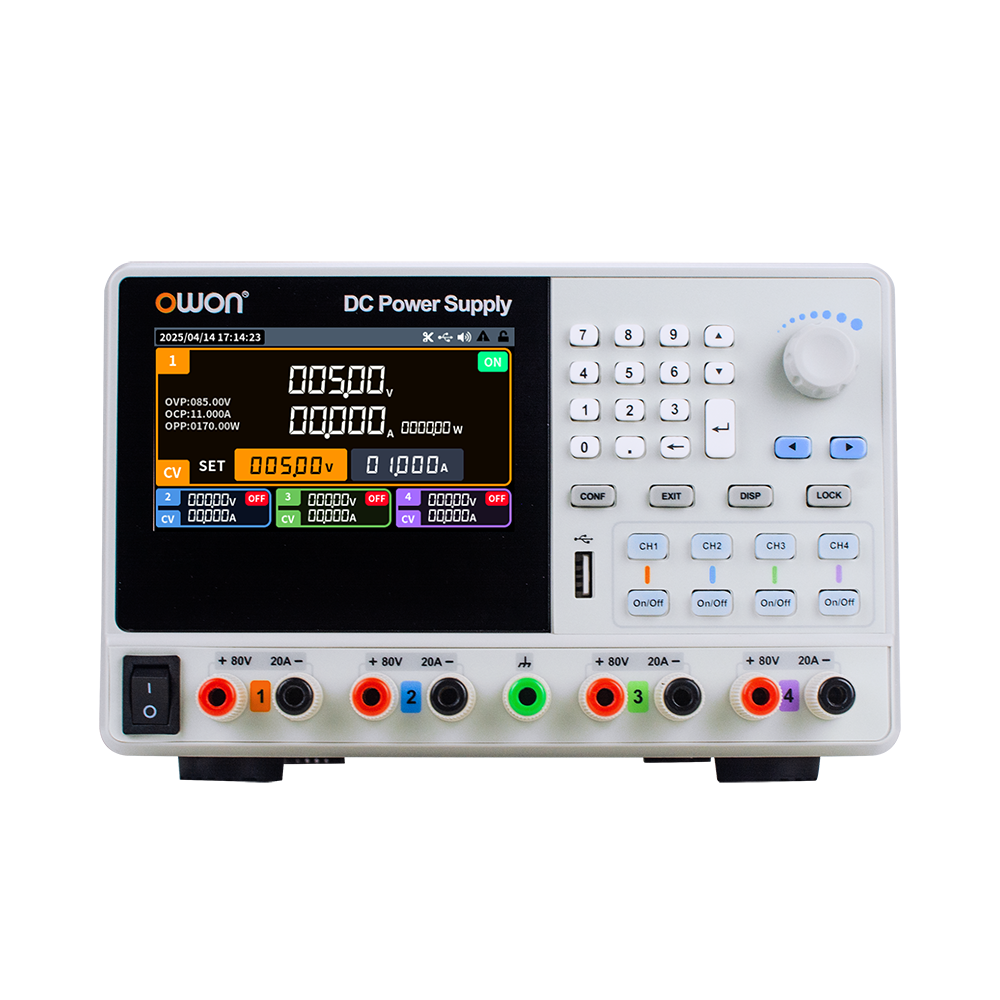

OWH80Q Series 4CH DC Power supply
| Model | Output Power | Voltage / Current Range | Channel | Input Power |
|---|---|---|---|---|
| OWH8080Q-2000 | 4*500W | 80V / 20A | 4 | 100V-240Vac |
| OWH8040Q-600F | 4*150W | 80V / 10A | 4 | 100V-240Vac |
| OWH8020Q-1000F | 4*250W | 80V / 5A | 4 | 100V-240Vac |
👉 Scroll horizontally to view full table
Digital Power Meter
OWH9800 Series Power Meter
Power Electronics Building Block (PEBB)
Modular and versatile power electronics platform designed for rapid prototyping, research labs, and
academic studies.
Research Ready

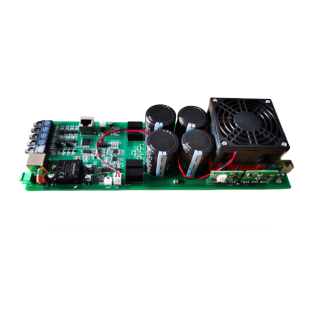

NVT-PEBB-400-30
High-performance modular converter with integrated gate drivers, protections, and
optical fiber interface.
Accelerate your research with a safe, plug-and-play solution.
⚡ 400V DC Bus
🔋 30A Current
🔌 50 kHz Switching
✨ Optical Interface
Buy Now – $1,600 CAD
🔒 Secure payment via Stripe
| Specification | Value |
|---|---|
| Voltage Rating | 400V DC Max |
| Current Rating | 30A Max |
| Semiconductors | 600V/50A IGBT Modules |
| Switching Frequency | Up to 50 kHz |
| Dead Time | 800ns (Onboard) |
| Protections | Over-voltage, Over-current, Short-circuit, Over-temp |
✨ Key Features
- Rapid Prototyping Platform
- Integrated Gate Drivers
- Optical Fiber Interface (4 Rx, 1 Tx)
- Compatible with dSPACE/FPGA controllers
- Modular heat sink mounting
Request
Datasheet
Contact Sales
OWON Programmable Electronic Loads
Professional DC loads designed for precision testing of power supplies, batteries, and chargers.
Featuring high-speed dynamic testing up to 5kHz.
Rack Mount
OEL85 Series
Rack-mount DC electronic loads (200W-500W). High precision
(0.1mV/0.1mA) with multiple operating modes.
⚡ 200W – 500W
🔋 Up to 40A
🔌 Up to 600V
✨ RS232 / RS485
| Model | Voltage | Current | Power | Min Voltage |
|---|---|---|---|---|
| OEL8513 | 0-150V | 0-40A | 500W | 1.1V |
| OEL8512 | 0-150V | 0-40A | 400W | 1.1V |
| OEL8512B | 0-300V | 0-40A | 400W | 1.1V |
| OEL8512C | 0-600V | 0-40A | 400W | 1.1V |
| OEL8511 | 0-150V | 0-20A | 200W | 0.8V |
Portable
OEL15/30/60 Series
Portable DC loads (150W-300W). Compact design, perfect for benchtop
testing and educational labs.
⚡ 150W – 300W
🔋 Up to 30A
🔌 Up to 600V
| Model | Voltage | Current | Power | Min Voltage |
|---|---|---|---|---|
| OEL1530 | 0-150V | 0-30A | 300W | 1.1V |
| OEL1520 | 0-150V | 0-20A | 300W | 0.9V |
| OEL3030 | 0-300V | 0-30A | 300W | 1.1V |
| OEL6020 | 0-600V | 0-20A | 300W | 0.9V |
🎯 Common Applications
- Battery Discharge Testing
- Power Supply Verification
- Solar Panel Loading
- Production Line Testing
OWON Programmable Power Supplies
Comprehensive range of DC power supplies from ultra-quiet fanless benchtop units to high-power
rack-mount systems up to 6kW.
Fanless Quiet

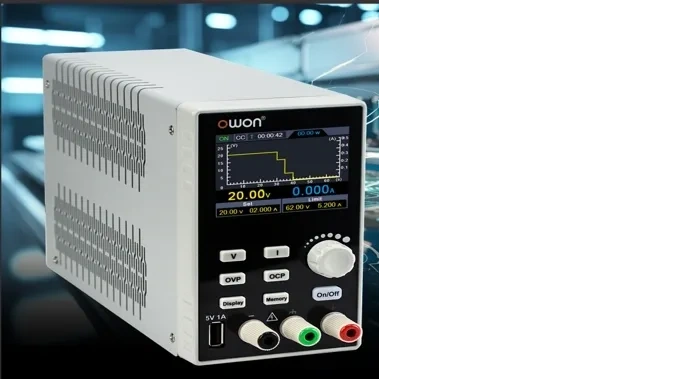

SPS Series
Ultra-quiet fanless power supplies. Ideal for noise-sensitive
environments and educational use.
⚡ 120W – 150W
🔋 0-8A
🔌 0-60V
🔇 Zero Noise
| Model | Voltage | Current | Power |
|---|---|---|---|
| SPS3051 | 0-30V | 0-5A | 150W |
| SPS6051 | 0-60V | 0-5A | 150W |
| SPS3081 | 0-30V | 0-8A | 120W |
Ultra-Compact
SPE Series
Fully digital, ultra-slim DC power supplies. Features 2.8″ LCD,
USB/SCPI support, and constant power functionality.
⚡ 150W – 500W
🔋 Up to 20A
🔌 0-60V
💻 SCPI Support
| Model | Voltage | Current | Power |
|---|---|---|---|
| SPE3051 | 0-30V | 0-5A | 150W |
| SPE6103 | 0-60V | 0-10A | 300W |
| SPE8205 | 0-80V | 0-20A | 500W |
Rack Mount

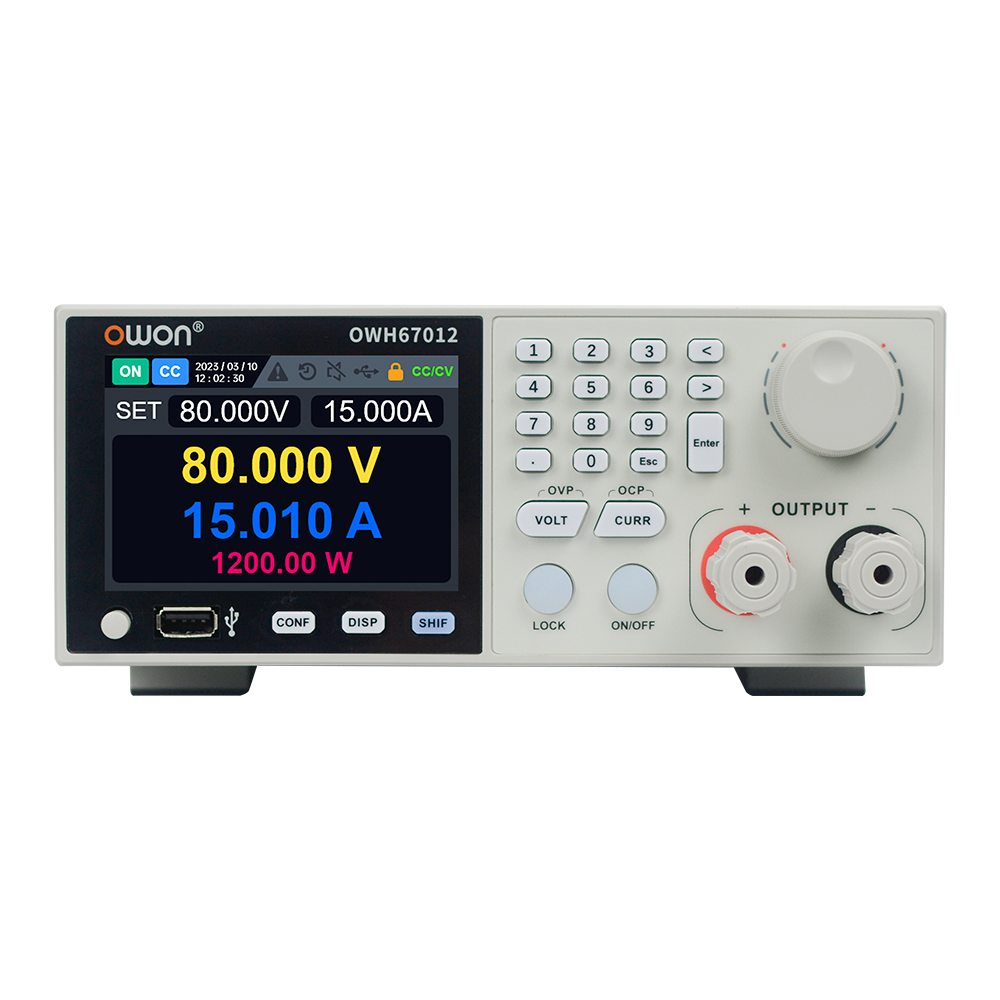

OWH67 Series
Mid-to-high power programmable DC supplies (1.2kW – 3kW). Supports PV
simulation for solar inverter testing.
⚡ 1.2kW – 3kW
🔋 Up to 30A
🔌 Up to 800V
☀️ PV Simulator
| Model | Voltage | Current | Power |
|---|---|---|---|
| OWH67012-80 | 0-80V | 0-30A | 1200W |
| OWH67020-600 | 0-600V | 0-10A | 2000W |
| OWH67030-300 | 0-300V | 0-15A | 3000W |
Dual Channel
OWH67D Series (Dual)
Two independent output channels in a single 2U chassis. Up to 6kW
total power. Ideal for multi-channel testing.
⚡ Up to 6kW
🔋 2 Independent Channels
🔌 Up to 600V
| Model | Channels | Voltage/Ch | Current/Ch | Total Power |
|---|---|---|---|---|
| OWH67010D-80 | 2 | 0-80V / 0-150V | 0-20A | 1000W |
| OWH67060D-150 | 2 | 0-150V | 0-30A | 6000W |
High Current
OWH80 Series
High current DC power supplies up to 160A. Designed for battery
charging, electroplating, and high-power applications.
⚡ 1.5kW – 3kW
🔋 Up to 160A
🔌 80V Nominal
| Model | Voltage | Current | Power |
|---|---|---|---|
| OWH80100 | 0-80V | 0-100A | 1500W |
| OWH80160 | 0-80V | 0-160A | 3000W |
Custom Power Electronics Development
Full-service power electronics engineering and development services. From concept to production, we
design and deliver custom power conversion solutions tailored to your specific requirements.
Our expertise includes resonant converters, DC-DC converters, inverters, and specialized industrial
power systems.
Engineering Services
- Custom topology design and optimization
- Circuit simulation and analysis (MATLAB/Simulink, PLECS)
- PCB design and layout (high-frequency, high-power)
- Embedded control system development (STM32, DSP)
- Prototype fabrication and testing
- Thermal analysis and cooling system design
- EMC/EMI compliance testing and mitigation
- Technical documentation and validation reports
- Production support and manufacturing guidance
