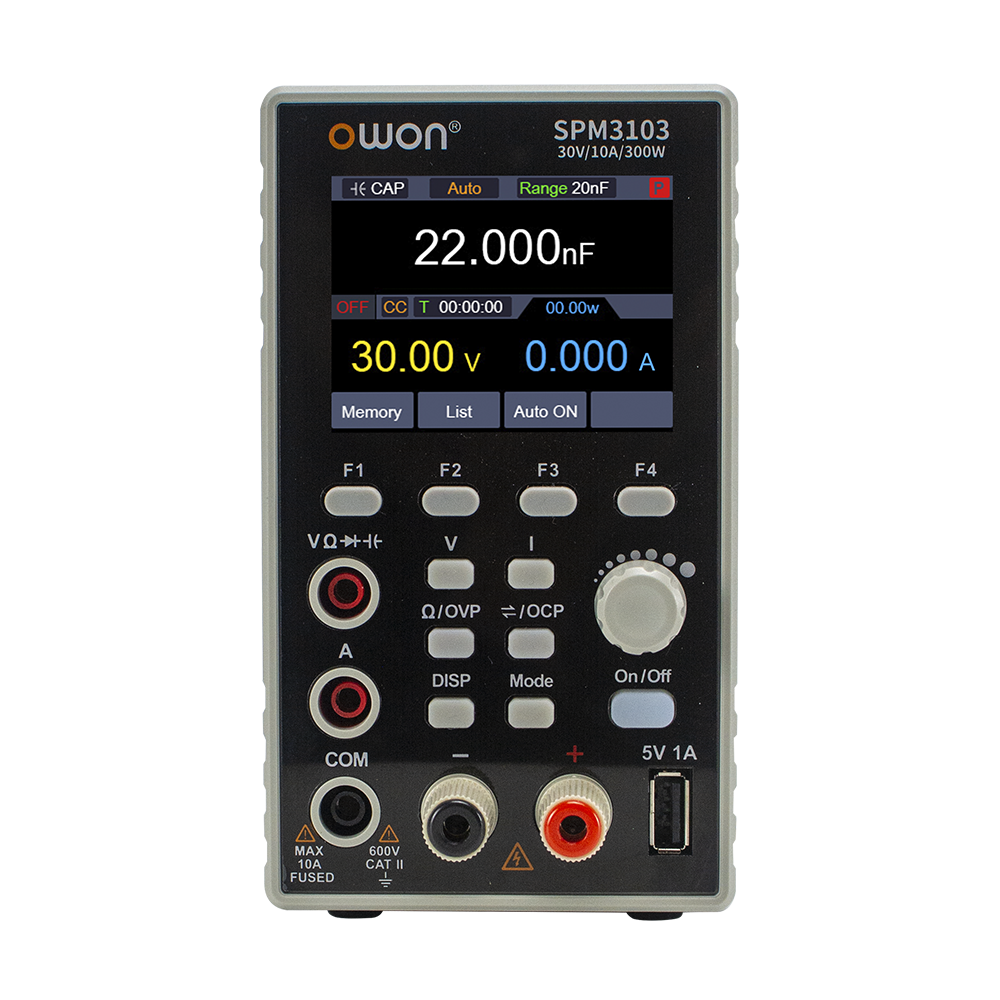

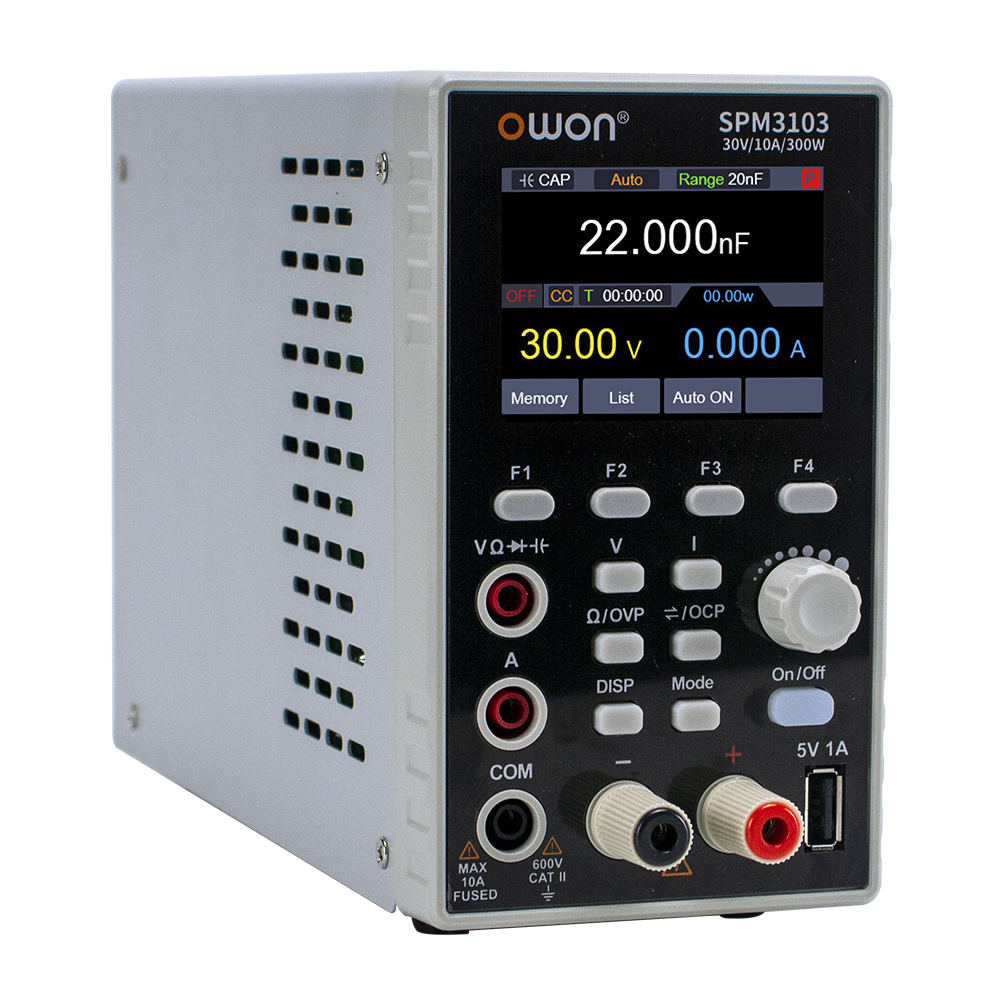

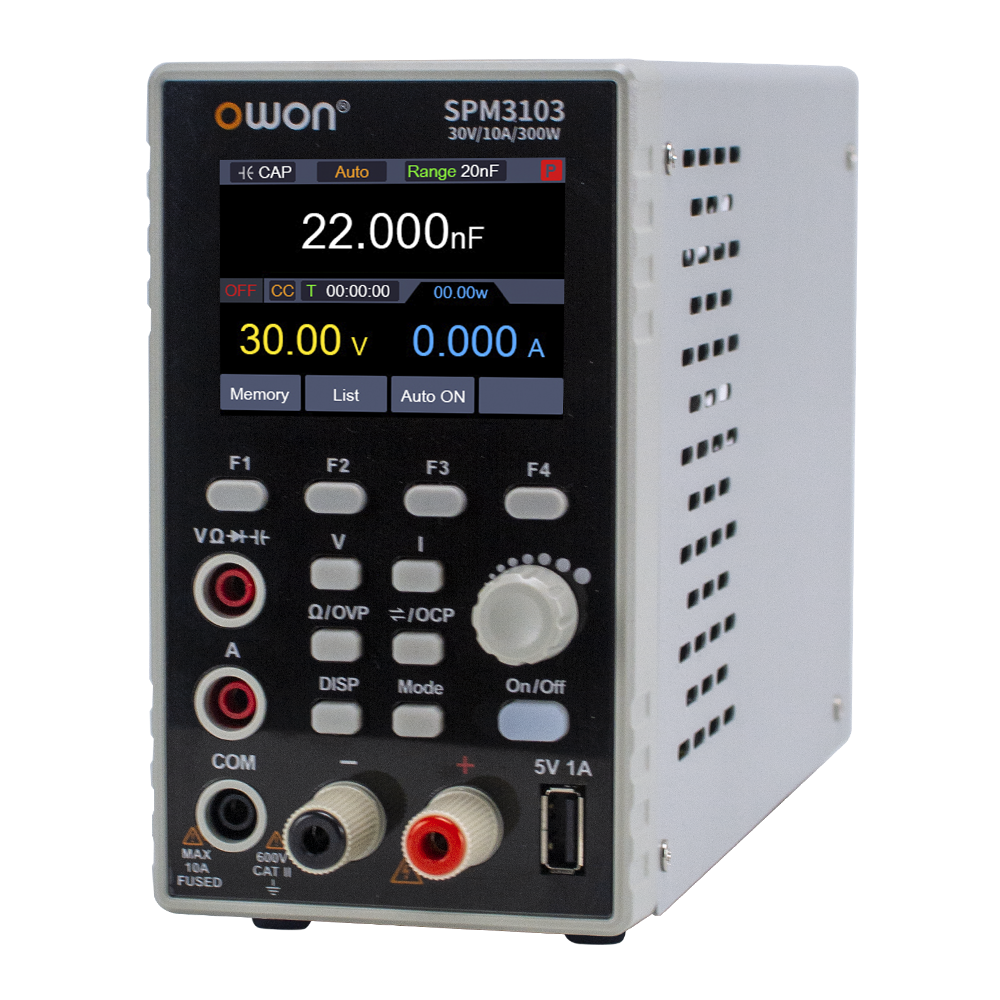

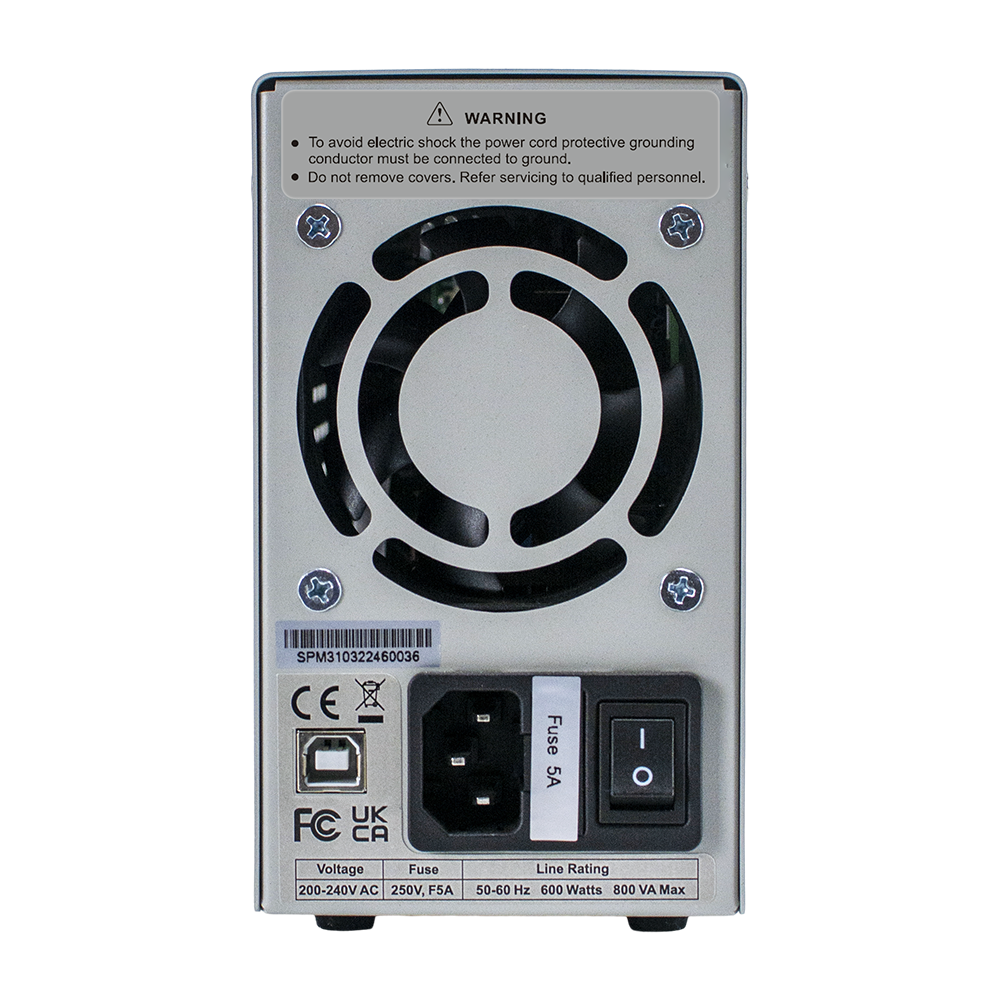

SPM Series 1 CH Power Multimeter

About Us

The argument in favor of using filler text goes something like this: If you use real content in the Consulting Process, anytime you reach a review point you’ll end up reviewing and negotiating the content itself and not the design.

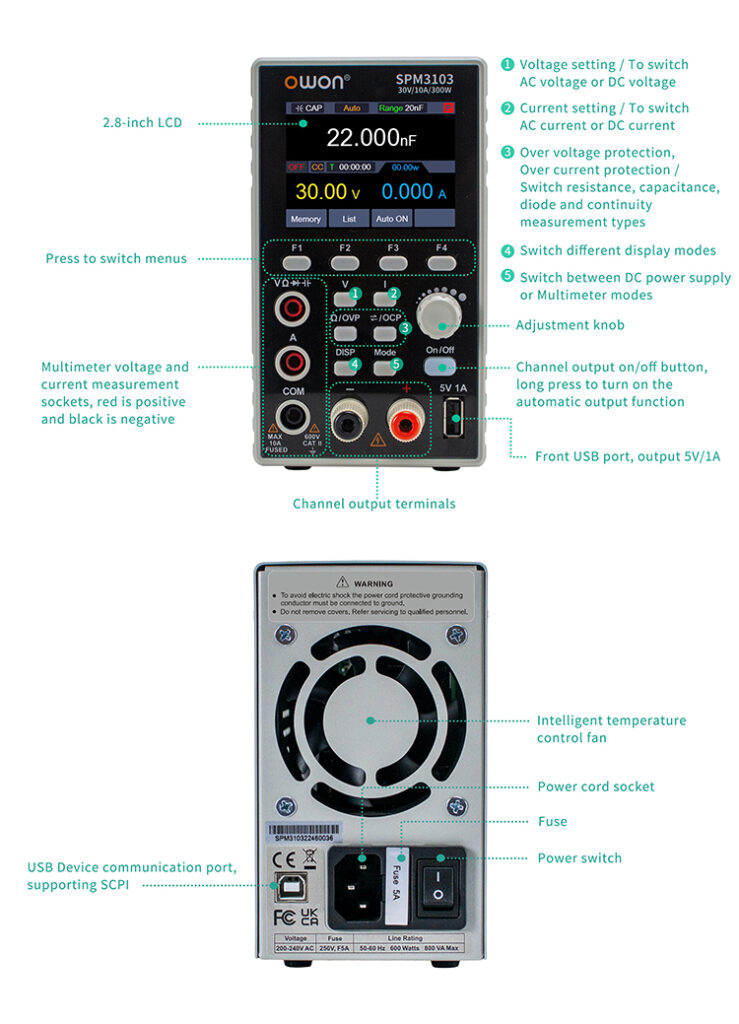

Description

Specifications

Model	SPM3051	SPM6053	SPM3103	SPM6103	SPM8104	SPM8205
Channel	Single Channel Output
Total Output Power	150W	300W	400W	500W	—	—

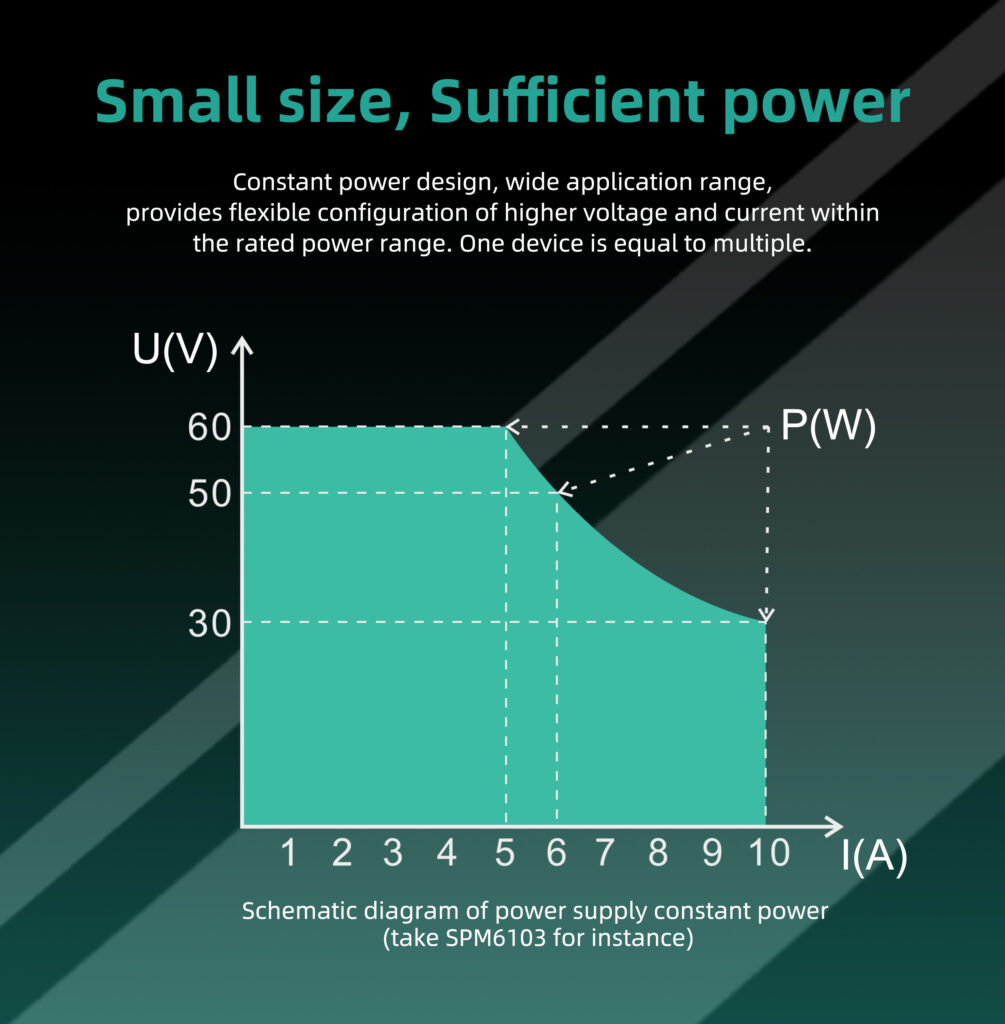

Channel Output	0 – 30V / 0 – 5A	0 – 60V / 0 – 5A	0 – 30V / 0 – 10A	0 – 60V / 0 – 10A	0 – 80V / 0 – 10A	0 – 80V / 0 – 20A

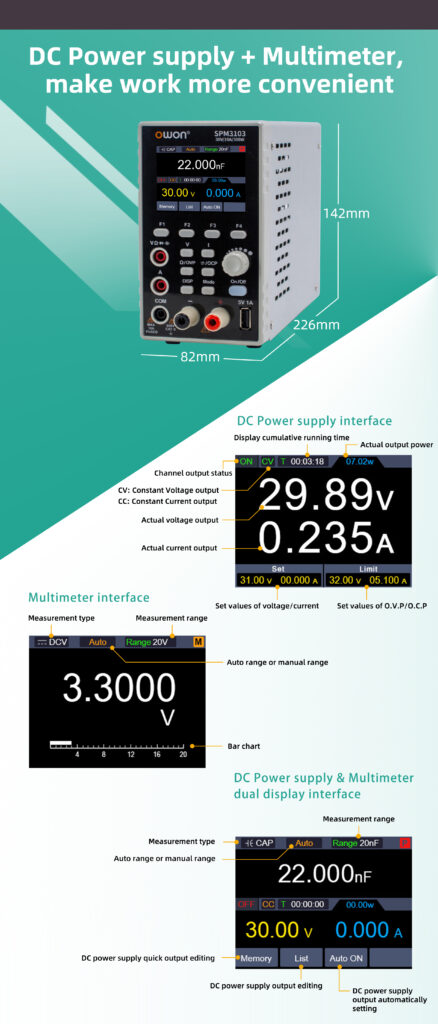

Display	2.8 inch color LCD display
Interface	USB Device, USB Host (5V 1A), Multiple interface options: USB Device (default) / RS232 / LAN
Dimension (W x H x D)	82mm(W) x 142mm(H) x 226mm(D)
Working Temperature	0 – 40℃
Weight	Approx. 1.5kg

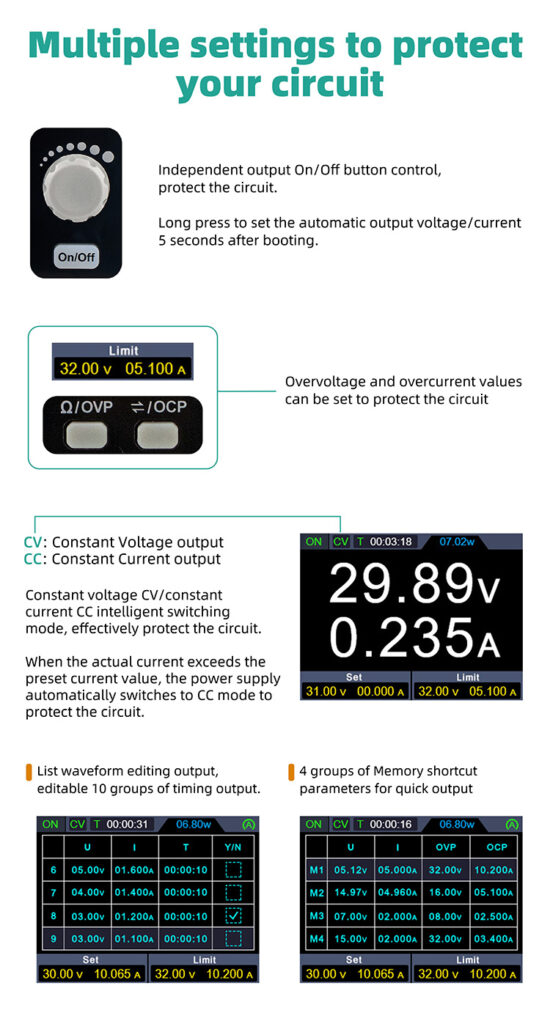

＋DC Power Specifications
The instrument must be operated continuously for more than 30 minutes at the specified temperature to ensure the following parameters.

Model		SPM3051	SPM6053	SPM3103	SPM6103	SPM8104	SPM8205
Rated Output (0℃-40℃)
Voltage	Output	0 – 30V	0 – 60V	0 – 30V	0 – 60V	0~80V	0~80V
	Current	5A	5A	10A	10A	0~10A	0~20A
Output Power		150W	300W	300W	300W	400W	500W
Load Regulation	Voltage	≤30mV	≤20mV
	Current	≤20mA	≤10mA
Power Regulation	Voltage	≤30mV	≤20mV
	Current	≤20mA	≤10mA
Setting Resolution	Voltage	10mV
	Current	1mA
Readback Resolution	Voltage	10mV
	Current	1mA
Value Resolution (within 12 months) (25℃±5℃)	Voltage	≤0.1% ± 20mV	≤0.1% ± 30mV	≤0.05%±20mV
	Current	≤0.05% ± 10mA	≤0.05%±20mA
Readback Value Resolution (25℃±5℃)	Voltage	≤0.1% ± 20mV	≤0.1% ± 30mV	≤0.05%±20mV
	Current	≤0.1% ± 10mA	≤0.05%±20mA
Ripple/Noise(*)	Voltage(Vp-p)	≤30mVp-p	≤50mVp-p	≤50mVp-p
	Voltage(rms)	≤3mVrms	≤5mVrms
	Current	≤20mA
Output Temperature Coefficient (0℃-40℃)	Voltage	100ppm/℃
	Current	200ppm/℃
Readback Temperature Coefficient	Voltage	100ppm/℃
	Current	200ppm/℃
Response Time (50%-100% rated load)		≤1.0ms / ≤5.0ms
Storage		4 groups of data

* Noise bandwidth 20MHz, ripple bandwidth 1MHz, connect 10uF electrolytic capacitor in parallel with 0.1uF ceramic capacitor to the output terminal for testing.

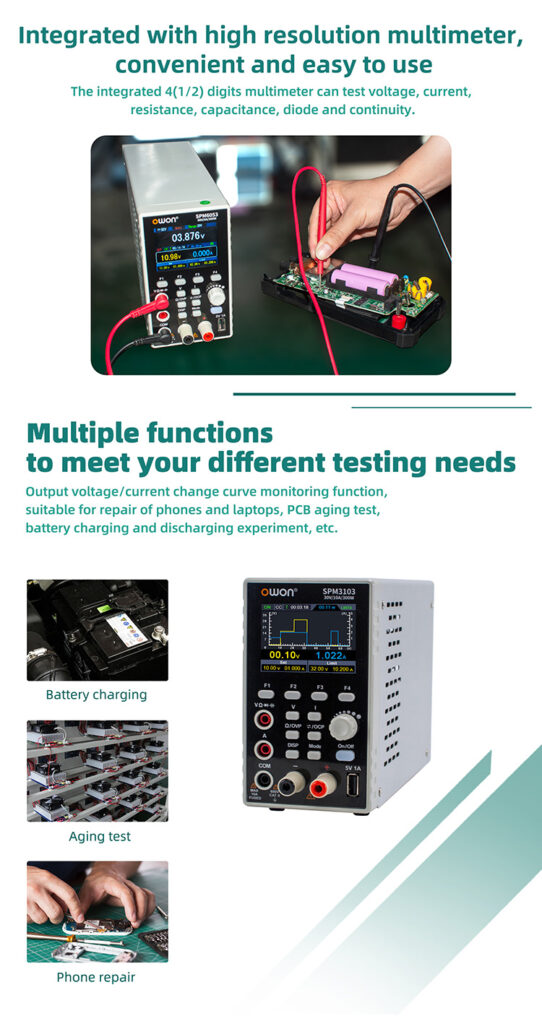

＋Multimeter Specifications

Function	Range / Type	Accuracy
Full Scale Reading	4½ digits	Auto Range √
Measure	Voltage, Current, Capacitance, Resistance, Continuity, Diode (0-2V) test
Capacitance	20.000nF, 200.00nF, 2.0000uF, 20.000uF, 200.00uF, 2.0000mF	±(3.0% ± 10 digit)
Voltage	DCV: 200.00mV, 2.0000V, 20.000V, 200.00V, 1000V	200.00mV: ±(0.3% ±10digit), Others: ±(0.3% ±5digit)
Voltage	ACV: 200.00mV, 2.0000V, 20.000V, 200.00V, 750V	200.00mV~200.00V: ±(0.8% ±10digit), 750V: ±(1% ±10digit)
Current	DCA: 200.00mA, 10.000A	200.00mA: ±(0.8% ±10digit), 10.000A: ±(2.5% ±10digit)
Current	ACA: 200.00mA, 10.000A	200.00mA: ±(1% ±10digit), 10.000A: ±(2.8% ±10digit)
Impedance	200.00Ω, 2.0000kΩ, 20.000kΩ, 200.00kΩ, 2.0000MΩ, 20.000MΩ, 100MΩ	200.00Ω~2.0000MΩ: ±(0.8% ±10digit), 20.000MΩ: ±(1% ±3digit), 100MΩ: ±(5% ±10digit)
