OW67D Series

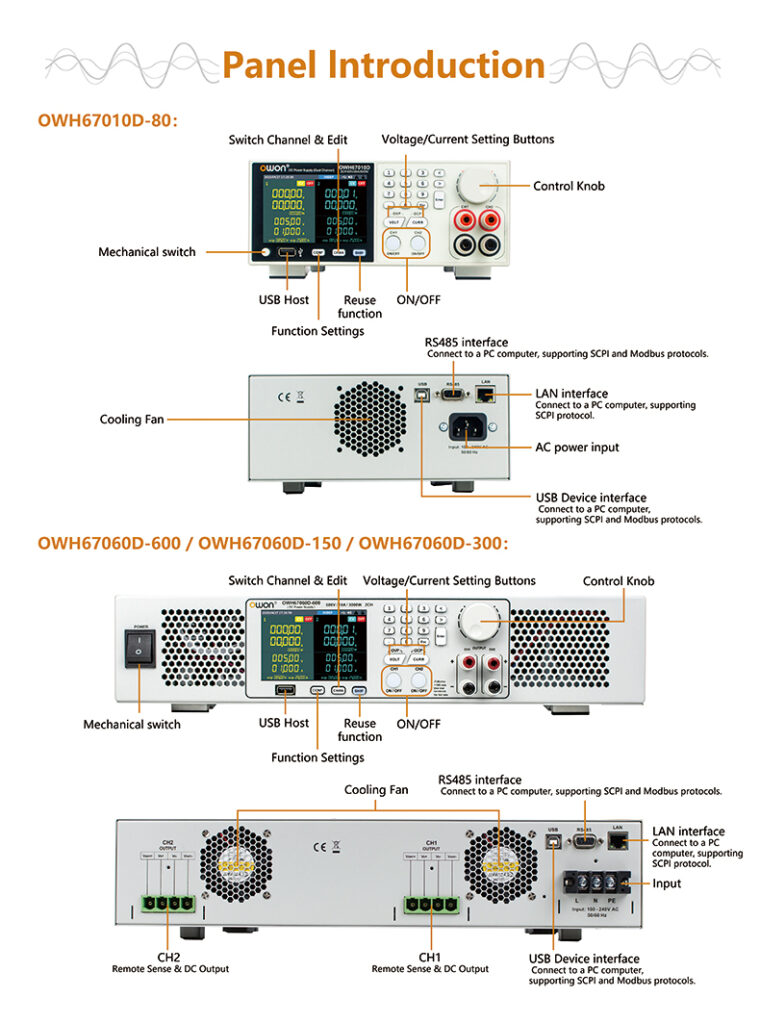

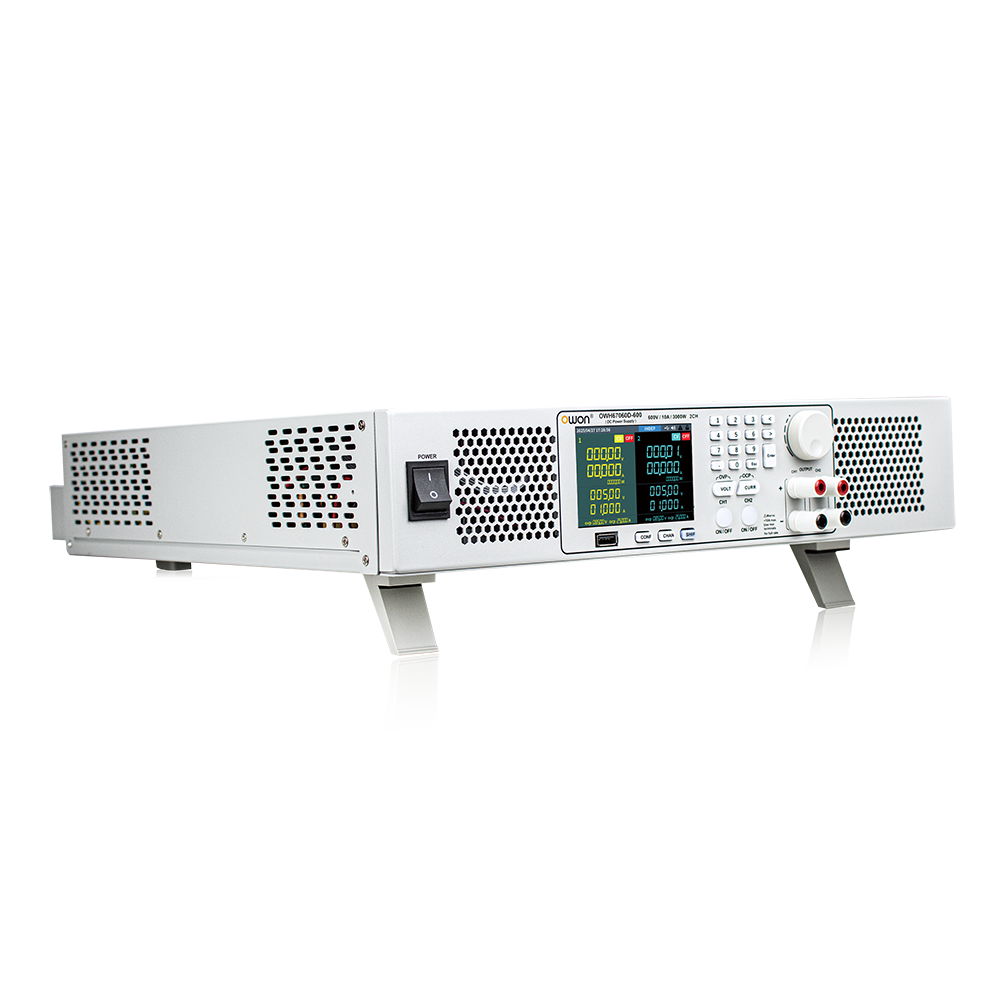

+ 2U standard rack size,front and rear panel output, suitable for rack-mounted applications
+ Supports wide-range AC input and wide voltage output, with constant power up to 1000W / 6000W.
+ 0.05% high-precision output and excellent stability, providing reliable assurance for demanding applications such as precision experiments, testing and measurement, and industrial manufacturing.
+ Supports 100-step LIST waveform programmable output
+ Selectable CC/CV Priority with smooth startup and no overshoot, adaptable to different load conditions.

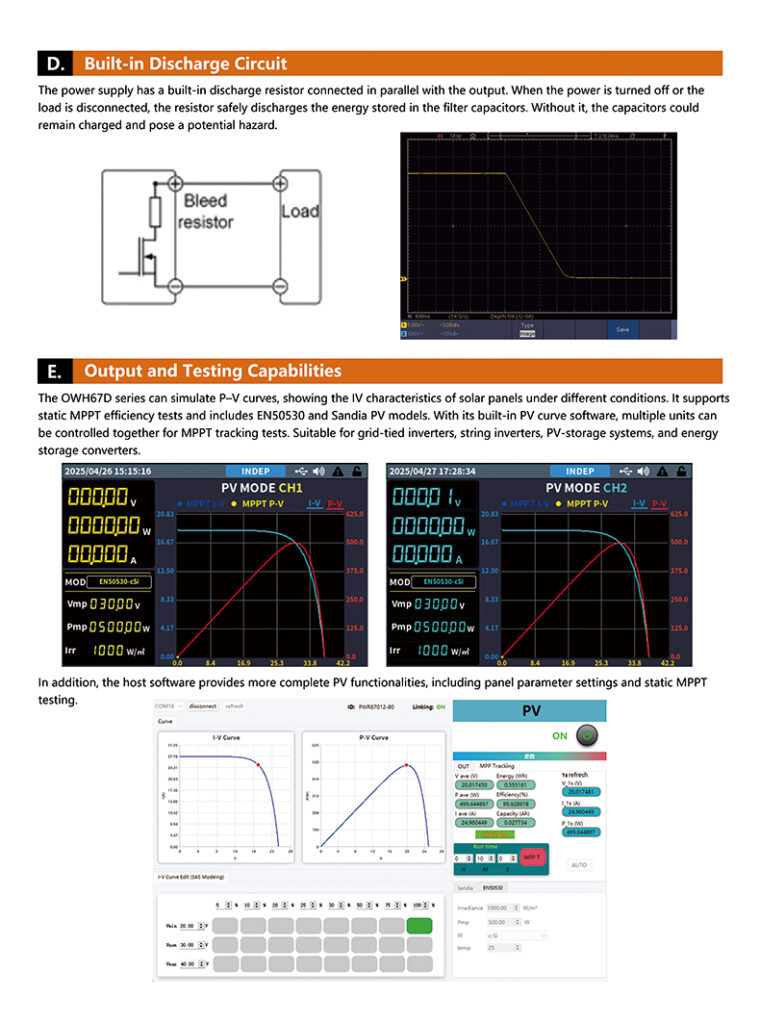

+ Built-in discharge circuit to eliminate residual high voltage when power is turned off

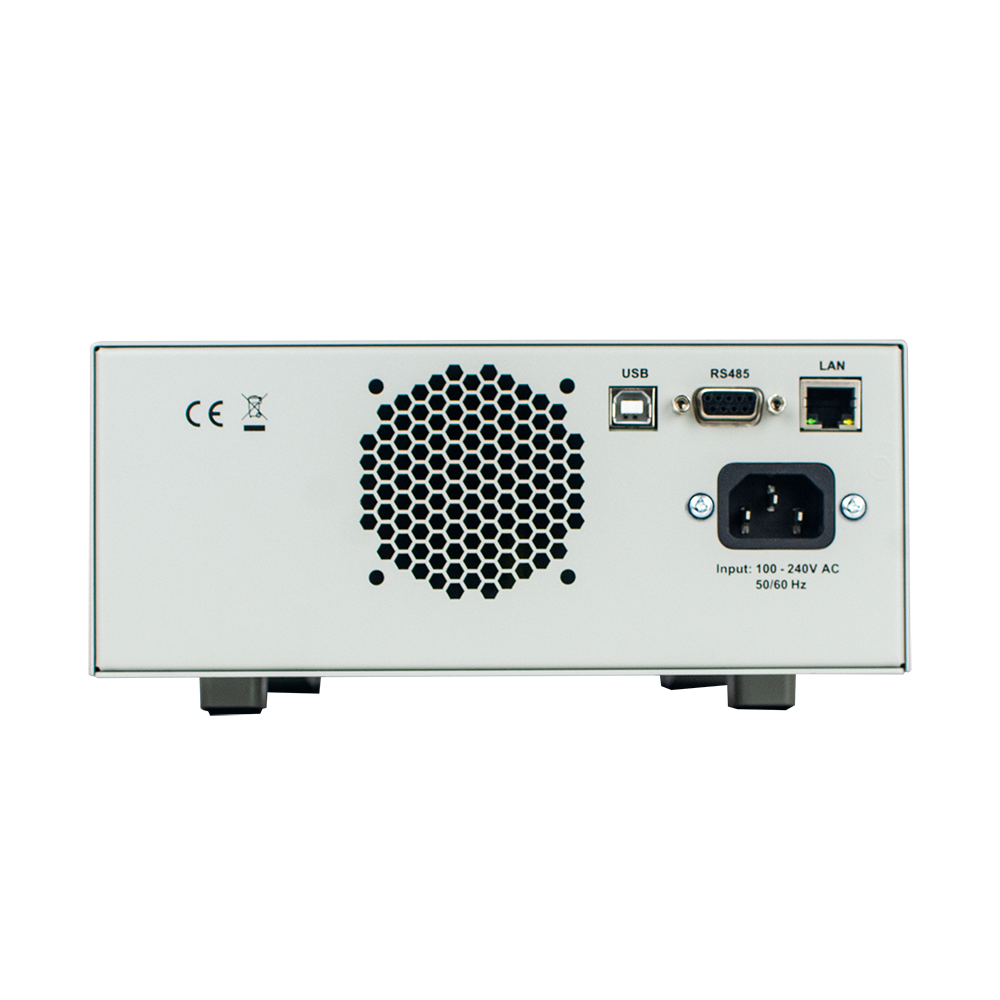

+ Equipped with USB, LAN, and RS485 interfaces, supporting SCPI and Modbus protocols separately. Enables real-time monitoring, flexible output configuration, and easy integration into automation systems.
+ Supports photovoltaic simulator output function, embedded with EN50530, Sandia and other PV standard curves for direct evaluation of PV inverter MPPT efficiency (optional)
+ 3.95-inch TFT display provides real-time, intuitive visualization of voltage/current waveforms and parameters, making power status monitoring clearer and safer.

Categories: DC Power Supply, Programmable DC supply

Description
Reviews (0)

Description

Specifications

The specifications based upon the instrument having run for at least 30 minutes continuously, under the specified operating environment

Model	OWH67010D-80	OWH67060D-150	OWH67060D-300	OWH67060D-600
Channel	2
Rated Output (0℃-40℃)	Output Voltage Range	0-80V；0-80V	0-150V；0-150V	0-300V；0-300V	0-600V；0-600V
	Output Current Range	0-20A；0-20A	0-30A；0-30A	0-15A；0-15A	0-10A；0-10A
	Power	1000W	6000W	6000W	6000W
	Power Supply	100V-240Vac；45Hz-65Hz
Load Regulation ±(％ of Output+Offset)	CV	≤0.05% ± 20mV	≤0.03% ± 20mV	≤0.03% ± 30mV	≤0.03% ± 50mV
	CC	≤0.05% ± 20mA	≤0.1% ± 30mA	≤0.1% ± 30mA	≤0.1% ± 30mA
	Linear Regulation CV	≤0.05% ± 20mV	≤0.03% ± 20mV	≤0.03% ± 30mV	≤0.03% ± 50mV
	Linear Regulation CC	≤0.05% ± 20mA	≤0.1% ± 30mA	≤0.1% ± 30mA	≤0.1% ± 30mA
Settings Resolution	10mV / 1mA
Readback Resolution	10mV/1mA, 1mV/1mA, 1mV/1mA, 1mV/1mA
Settings Accuracy	CV	≤0.05% ± 20mV	≤0.05% ± 20mV	≤0.05% ± 50mV	≤0.05% ± 100mV
Settings Accuracy	CC	≤0.05% ± 20mA	≤0.1% ± 20mA	≤0.1% ± 20mA	≤0.1% ± 30mA
Readback Accuracy	CV	≤0.05% ± 20mV	≤0.05% ± 20mV	≤0.05% ± 50mV	≤0.05% ± 100mV
Readback Accuracy	CC	≤0.05% ± 20mA	≤0.1% ± 20mA	≤0.1% ± 20mA	≤0.1% ± 30mA
Noise / Ripple (*)	CV	≤50mVp-p	≤150mVp-p	≤250mVp-p	≤500mVp-p
Noise / Ripple (*)	CC	≤20mArms	≤50mArms	≤50mArms	≤50mArms
Temperature Coefficient (0℃-40℃)	100ppm/℃（Voltage）；200ppm/℃（Current）
Readback Temperature Coefficient	100ppm/℃（Voltage）；200ppm/℃（Current）
Recovery Time (10%~90% rated load)	≤5.0ms
Operation Temperature	0-40℃
Interface	USB / LAN / RS485
Display	3.95 inch LCD
Size (WHD mm)	215.0 x 88.0 x 453.0	430.0 x 88.0 x 453.0
Weight (kg)	5	13

Support

Programming Manual for OWH67D 2CH Power Supply (Download)

Quick Gudie for OWH67D Series 2 CH Power Supply (Download)

User Manual for OWH67D Series 2 CH Power Supply (Download)

Product Details

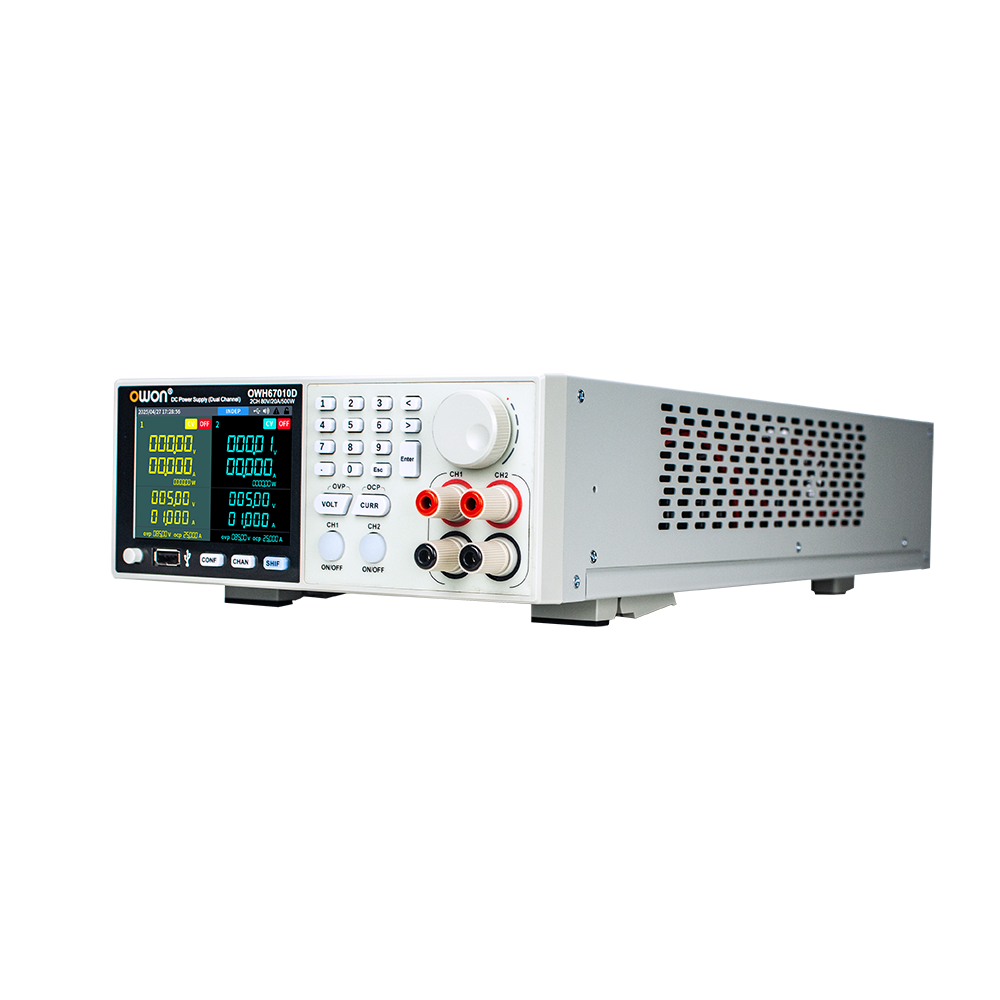

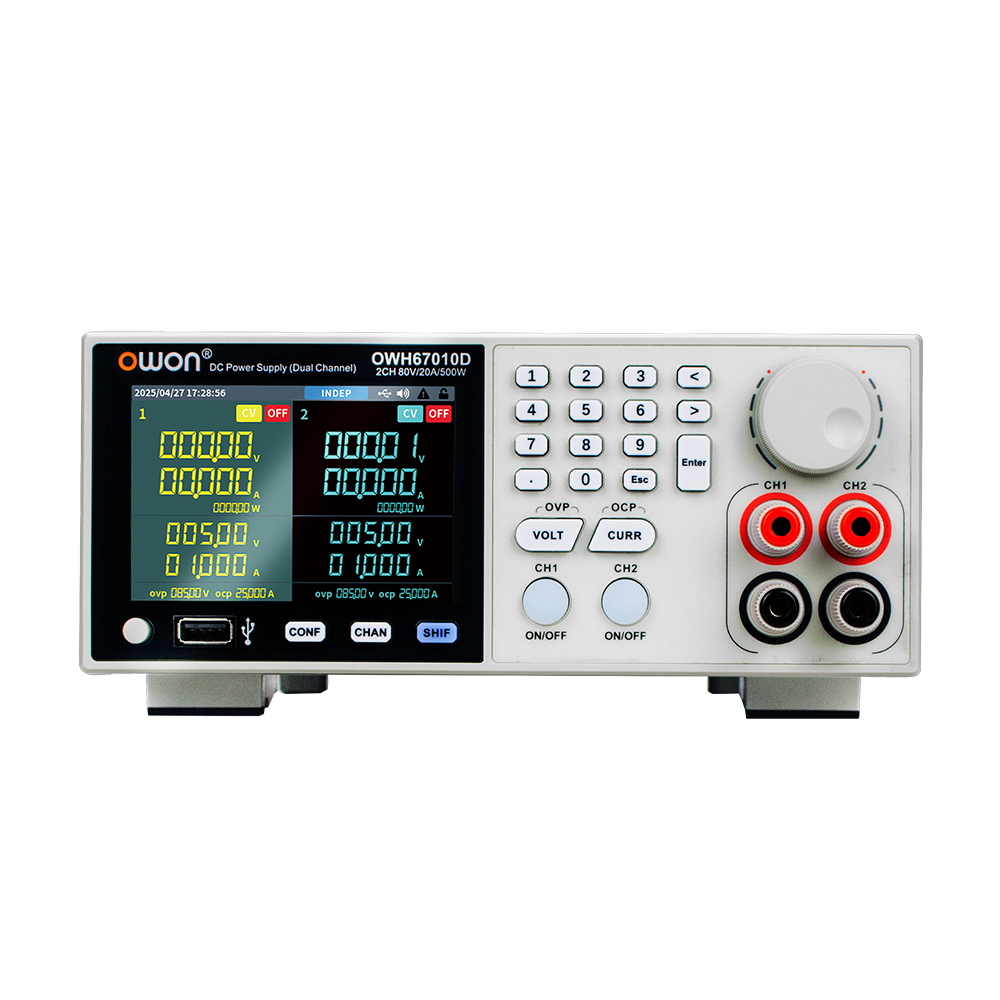

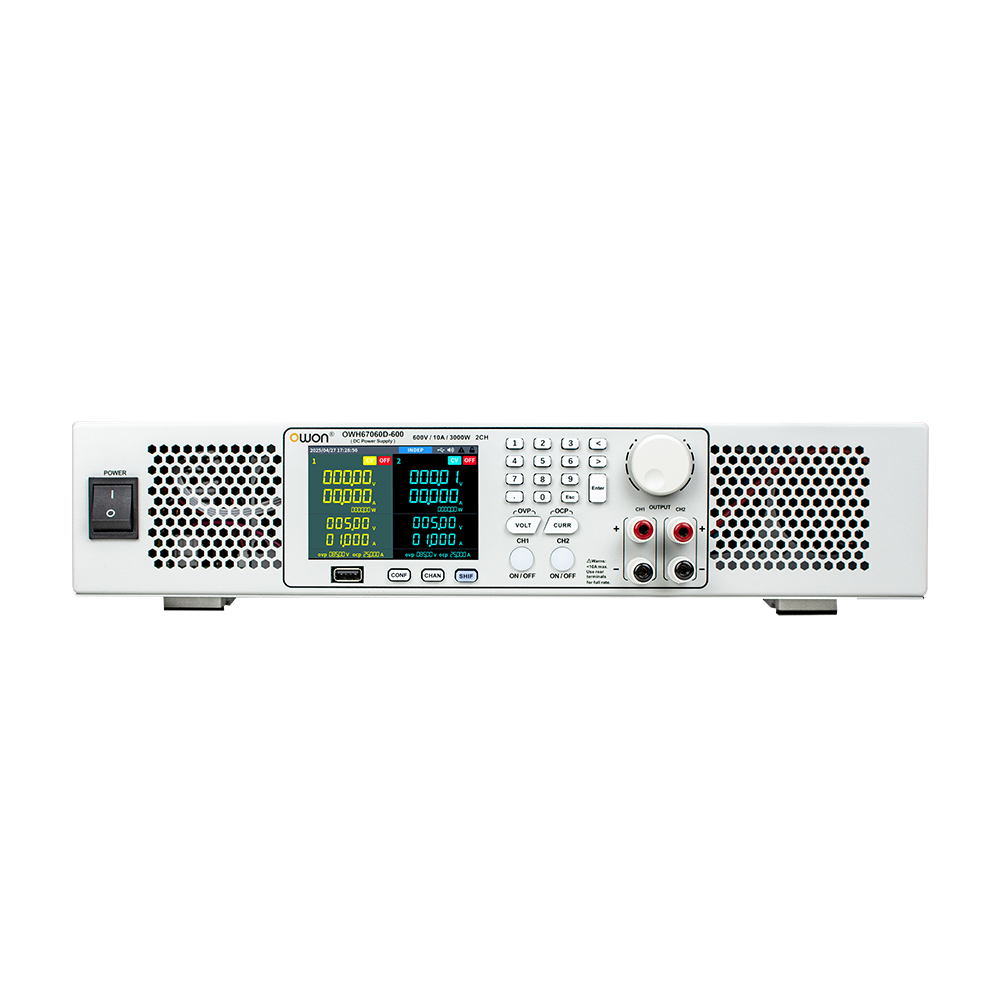

The OWH67D Series is a dual-channel high–power programmable DC power supply that supports wide-range constant power output. It includes models OWH67010D-80 (80V/20A,1000W), OWH67060D-600(600V/10A,6000W), OWH67060D-150 (150V/30A,6000W) and OWH67060D-300(300V/15A), covering diverse high-voltage and high-current testing applications.

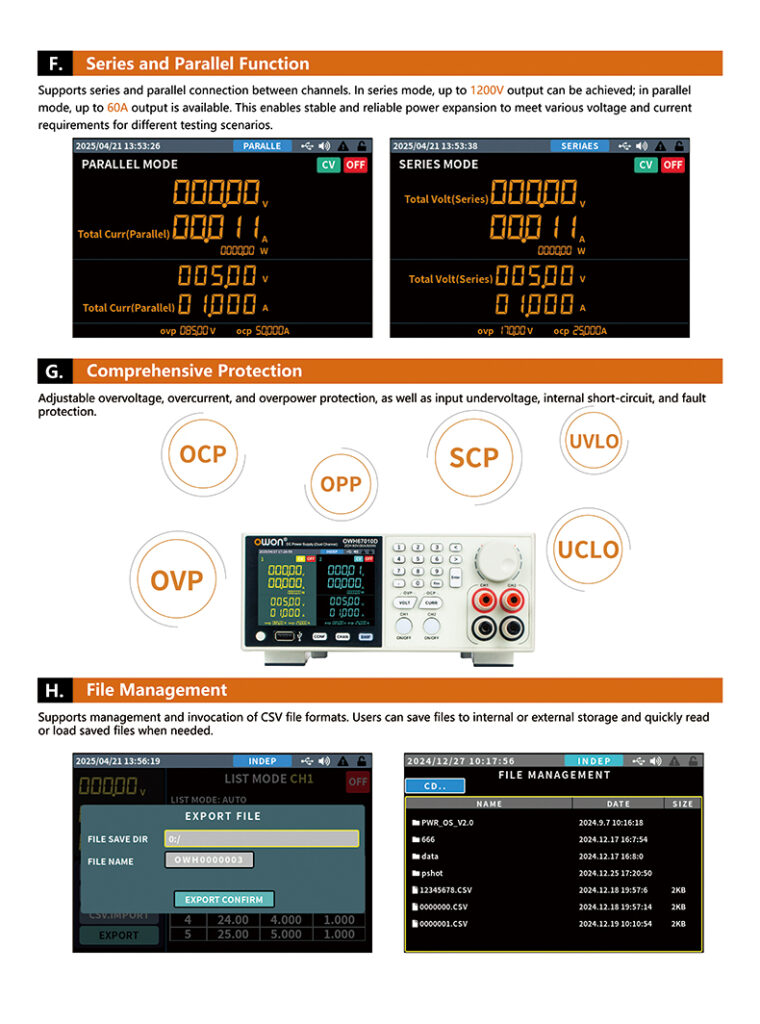

Equipped with a 3.95-inch color LCD display, the OWH67D offers a user-friendly interface and excellent performance, with a minimum setting resolution of 10mV / 1mA. lt delivers high-precision, stable, and reliable output, with selectable CC / CV priority, programmable LlST waveform output, and a built-in discharge circuit. Comprehe nsive protections include adjustable OVP, OCP, OPP, input undervoltage, and internal short-circuit protection. Beyond power output, it also provides measurement capability and supports PV simulator functions with built-in EN50530 and Sandia curves for direct evaluation of PV inverter MPPT efficiency.
The OWH67D series comes with standard LAN /RS485 / USB interfaces, supporting SCPl and Modbus protocols. It allows remote control via USB communication for real-time monitoring and flexible output configuration. It is widely used in power design validation, general laboratory testing, automotive electronics, and new energy applications.
