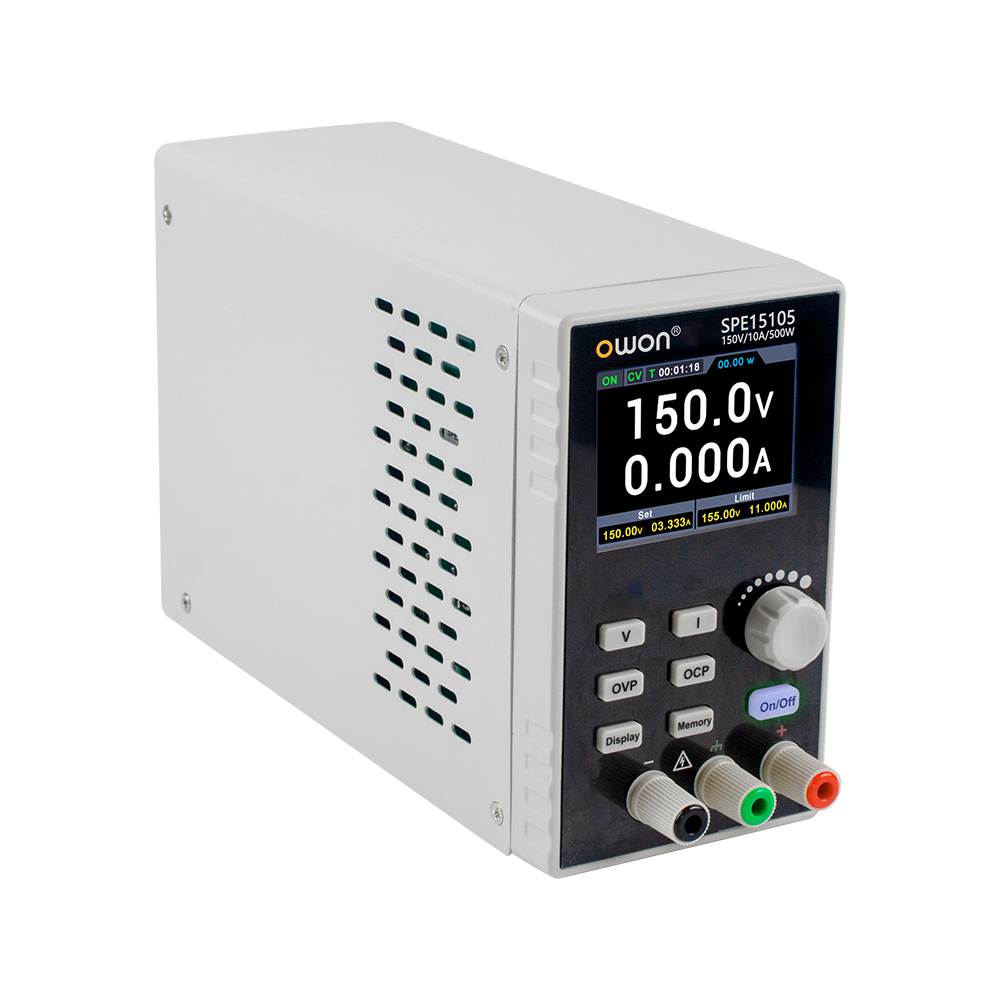

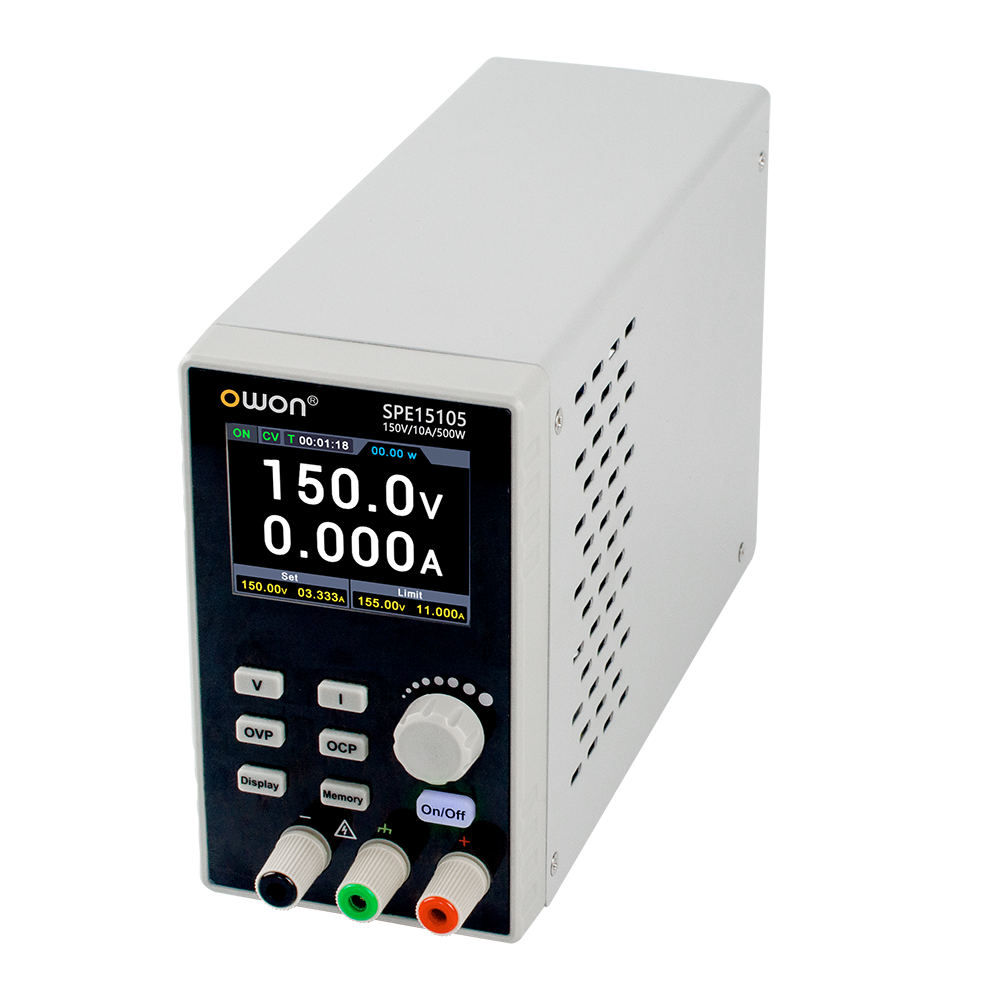

Spe Series High Voltage ( 6 Models)

About Us

The argument in favor of using filler text goes something like this: If you use real content in the Consulting Process, anytime you reach a review point you’ll end up reviewing and negotiating the content itself and not the design.

+Ultra-thin design, portable and easy to use
+ Max.500W constant power output with 0.05% high-precision voltage and current control
+ Full digital control with comprehensive protection: OVP/ OCP/ OTP
+ Power-on auto output setting, ideal for unattended applications
+ CV (Constant Voltage) / CC (Constant Current) modes
+ Built-in discharge circuit to eliminate residual high voltage at shutdown

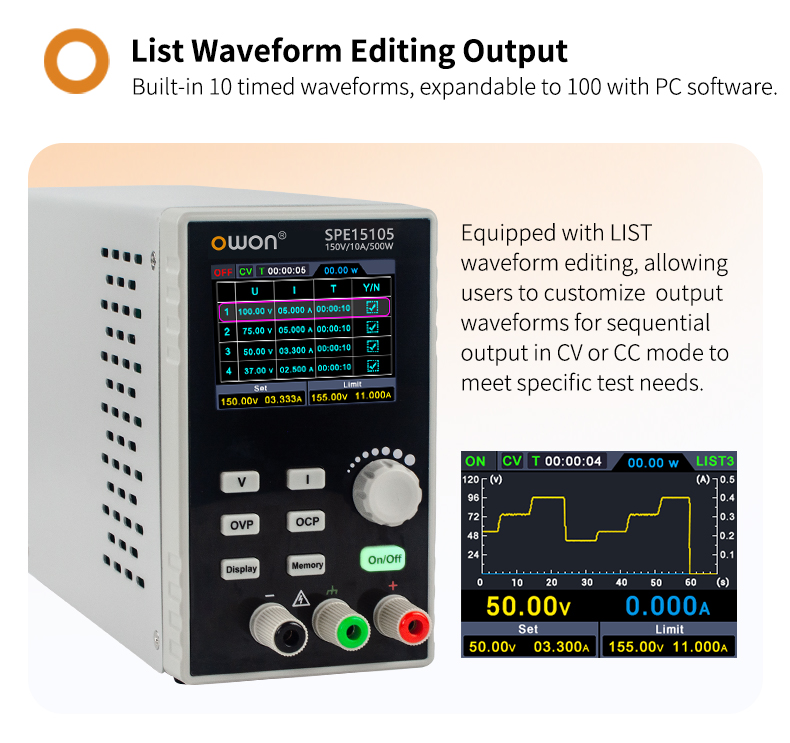

+ List waveform output with up to 10 programmable timing steps
+ 4 sets of memory presets for quick recall, enabling easy use in factory and production line environments

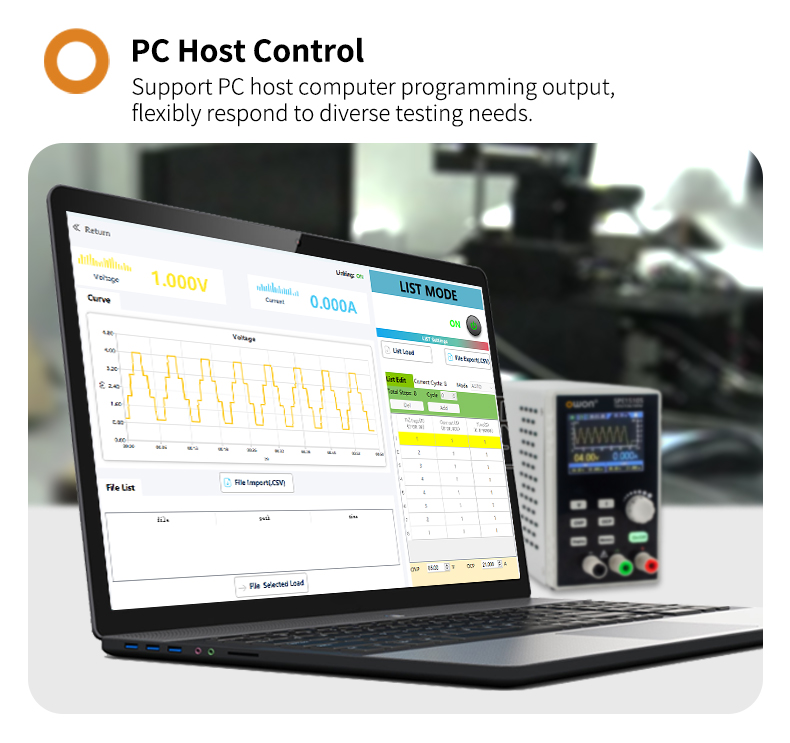

+ Supports programmable output via PC software, providing flexible solutions for diverse testing needs

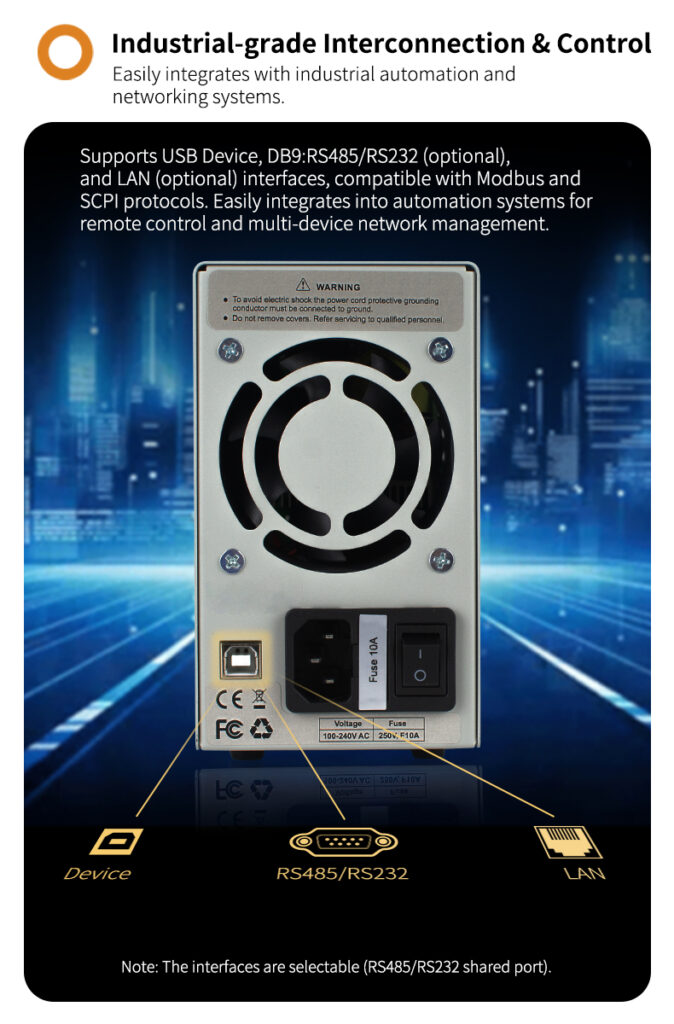

+ Versatile interfaces: USB device, optional RS485/RS232, optional LAN; supports Modbus and SCPI protocols
for industrial process control and centralized network control

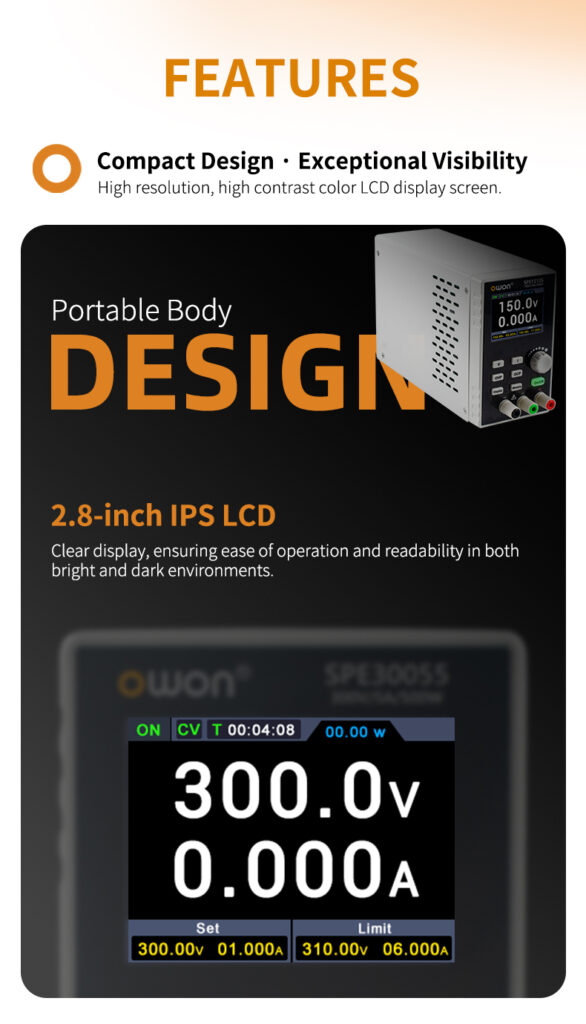

+ 2.8-inch color IPS LCD display

Description

Specifications

The instrument must be operated continuously for more than 30 minutes at the specified operatingtemperature to achieve the following specifications.

Model		SPE15054	SPE15105	SPE30054	SPE30055	SPE50024	SPE50025
Rated Output（0℃-40℃）	Voltage	0 – 150V	0 – 150V	0~300V	0~300V	0~500V	0~500V
	Current	0 – 5A	0 – 10A	0~5A	0~5A	0~2A	0~2A
	Power	400W	500W	400W	500W	400W	500W

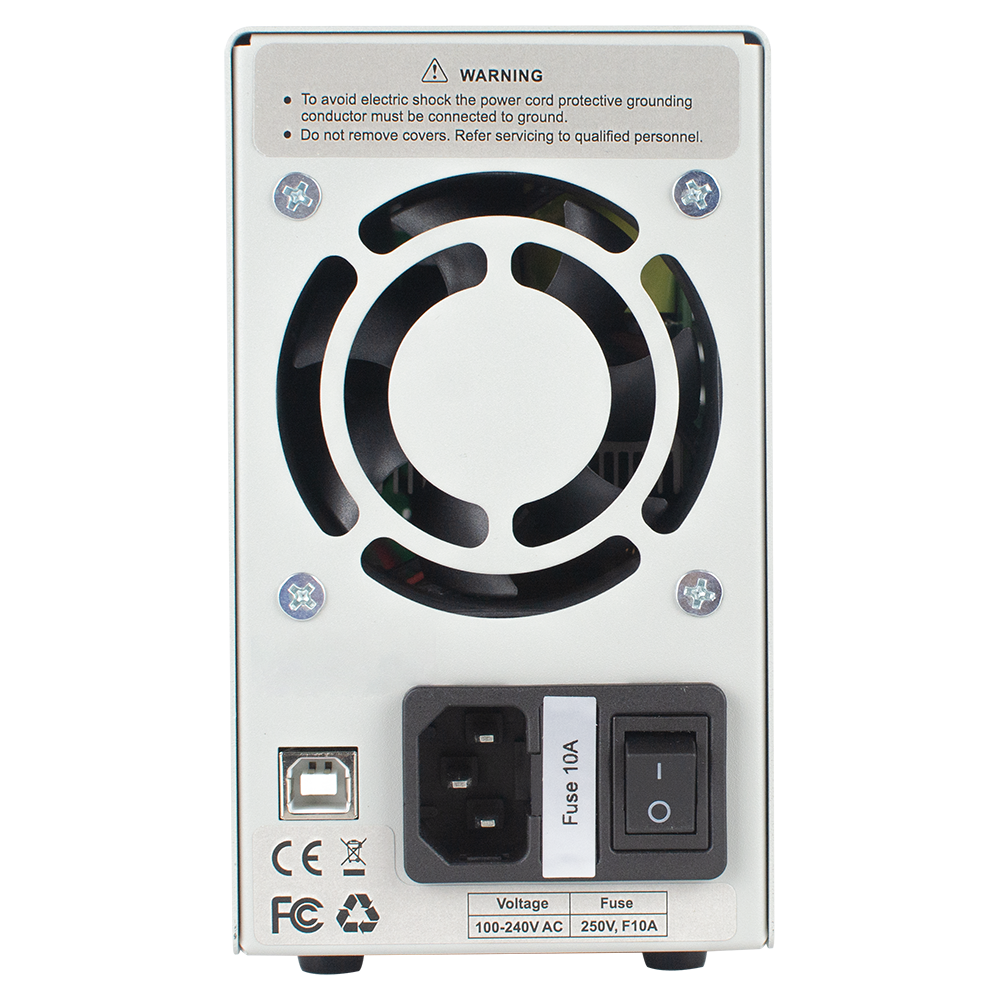

Input Characteristics	Supply Voltage	100V- 240V
	Input Frequency	45- 65Hz
	Input Fuse	250V, F10A
Regulation (CV)	Load	≤20mV		≤30mV		≤200mV
	Line	≤20mV		≤30mV		≤200mV
Regulation (CC)	Load	≤10mA				≤10mA
	Line	≤10mA				≤10mA
Ripple & Noise	Voltage (Vpp)	≤150mVpp	≤150mVpp	≤300mVpp	≤300mVpp	≤500mVp-p	≤500mVp-p
	Current (rms)	≤30mA	≤30mA	≤30mA	≤30mA	≤20mA	≤20mA
Setting Resolution		10mV/1mA
Readback Resolution		10mV/1mA
Setting Accuracy	Voltage	≤0.05%±20mV		≤0.05%±200mV
	Current	≤0.05%±20mA
Readback Accuracy	Voltage	≤0.05%±20mV		≤0.05%±200mV
	Current	≤0.05%±20mA
Transient recovery time (10%- 100% rated load)		≤5.0ms
OVP		0 – 155V	0 – 155V	0 – 310V	0 – 310V	0~510V	0~510V
OCP		0 – 6A	0 – 11A	0 – 6A	0 – 6A	0~3A	0~3A
OTP		85℃	85℃	85℃	85℃	85℃	85℃
Temperature coefficient of output	Voltage	100ppm/℃
	Current	200ppm/℃
Temperature coefficient of readback value	Voltage	100ppm/℃
	Current	200ppm/℃
Display	Display Type	2.8-inch Color LCD Display (IPS Panel)
	Resolution	240 x 320 pixels
	Color	65536 color, TFT
Temperature		Working Temperature：0℃- 40℃; Storage Temperature：-20℃～60℃
Relative Humidity		≤90%RH; no condensation
Height		2,000 meters
Cooling		Fan cooling, temperature intelligent speed control
Communication Port		USB, DB9: RS232/RS485(optional), LAN (optional), compatible with the SCPI communication protocol
Dimension		82mm(W)× 142mm(H)×226mm(D)
Weight		Approx. 1.6kg

Noise bandwidth 20MHz, ripple bandwidth 1MHz, connect 10uF electrolytic capacitor in parallel with 0.1uF ceramic capacitor to the output terminal for testing.
