OEL85 Series Rack-Mount DC Electronic Load 200-500W

About Us

The argument in favor of using filler text goes something like this: If you use real content in the Consulting Process, anytime you reach a review point you’ll end up reviewing and negotiating the content itself and not the design.

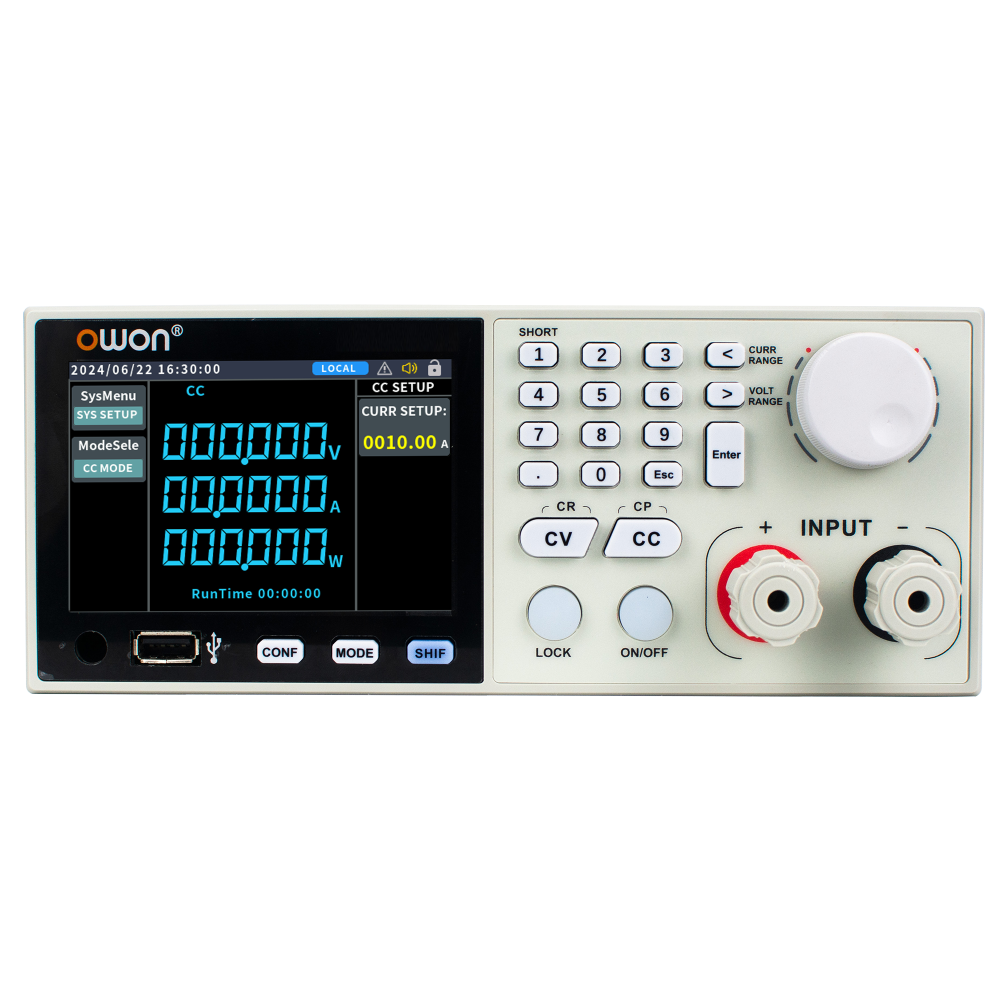

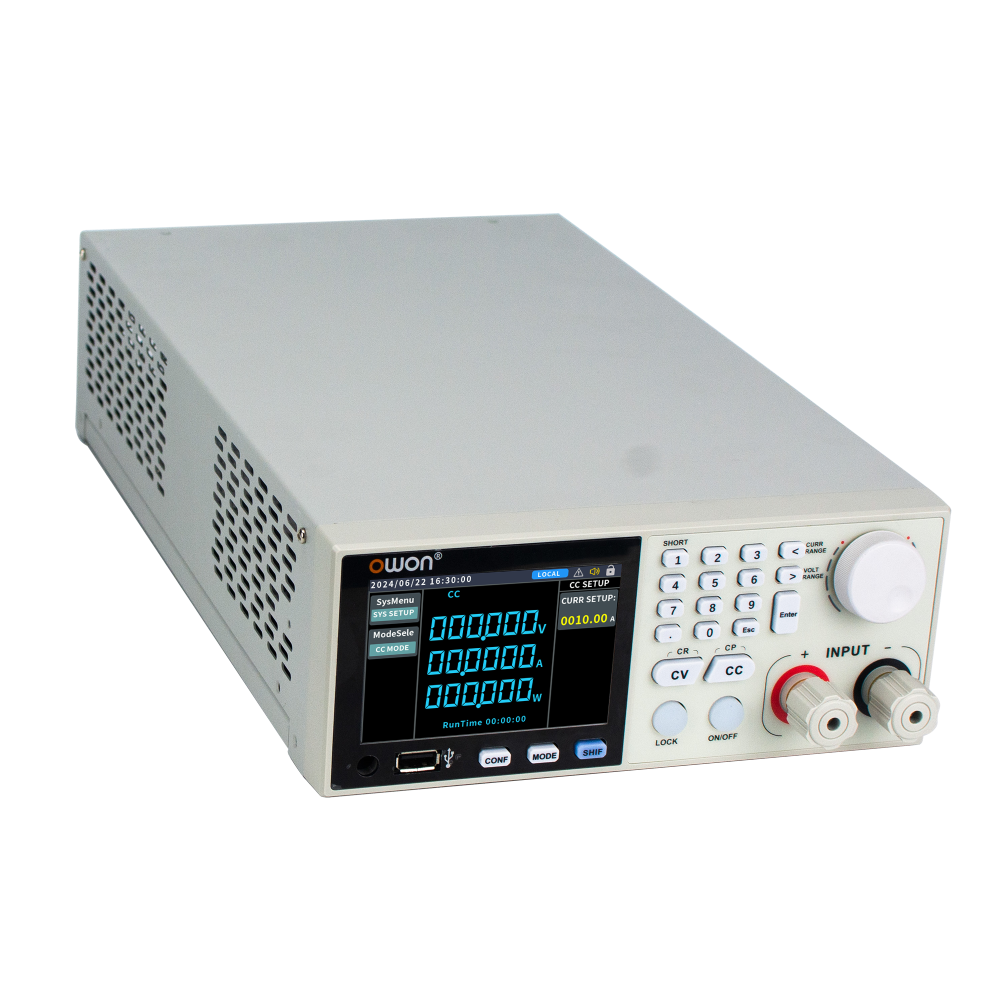

OEL85 Series DC Electronics Load

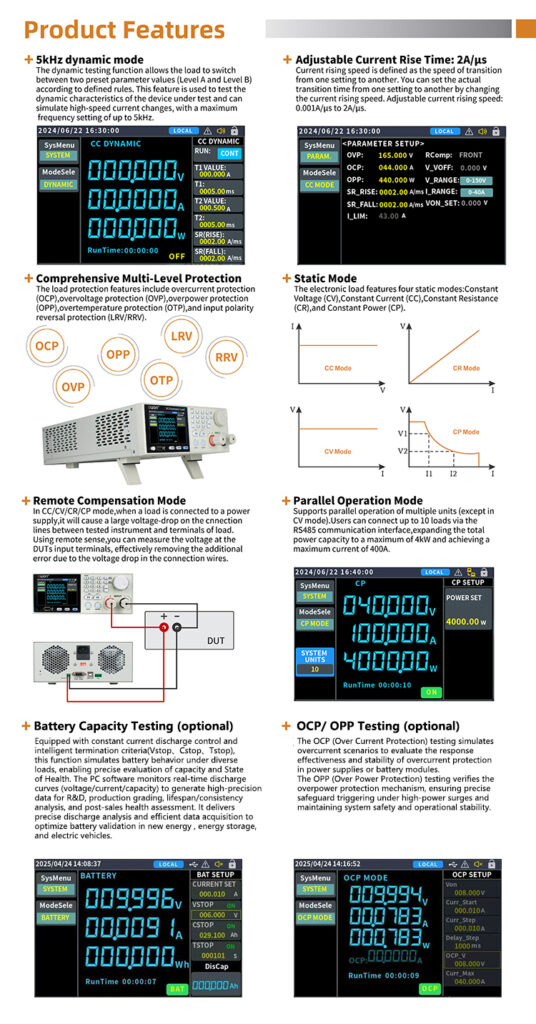

+ Dynamic mode: up to 5kHz
+ Readback resolution: 1 mV/0.1 mA
+ Overvoltage/Overcurrent/Overpower/Overtemperature/Reverse Voltage protection
+ 4 static modes: CC, CV,CR,CP
+ Supports CC dynamic mode and short-circuit simulation
+ Adjustable current rise time range: 0.001A/μs~2A/μs
+ Supports multi-unit parallel operation (except CV mode), Communicates via RS485, and can be expanded to 10 units for a total of 4kW
+ Optional test functions:Battery Discharge Test，OCP Test,OPP Test (Order No.OEL-T1)

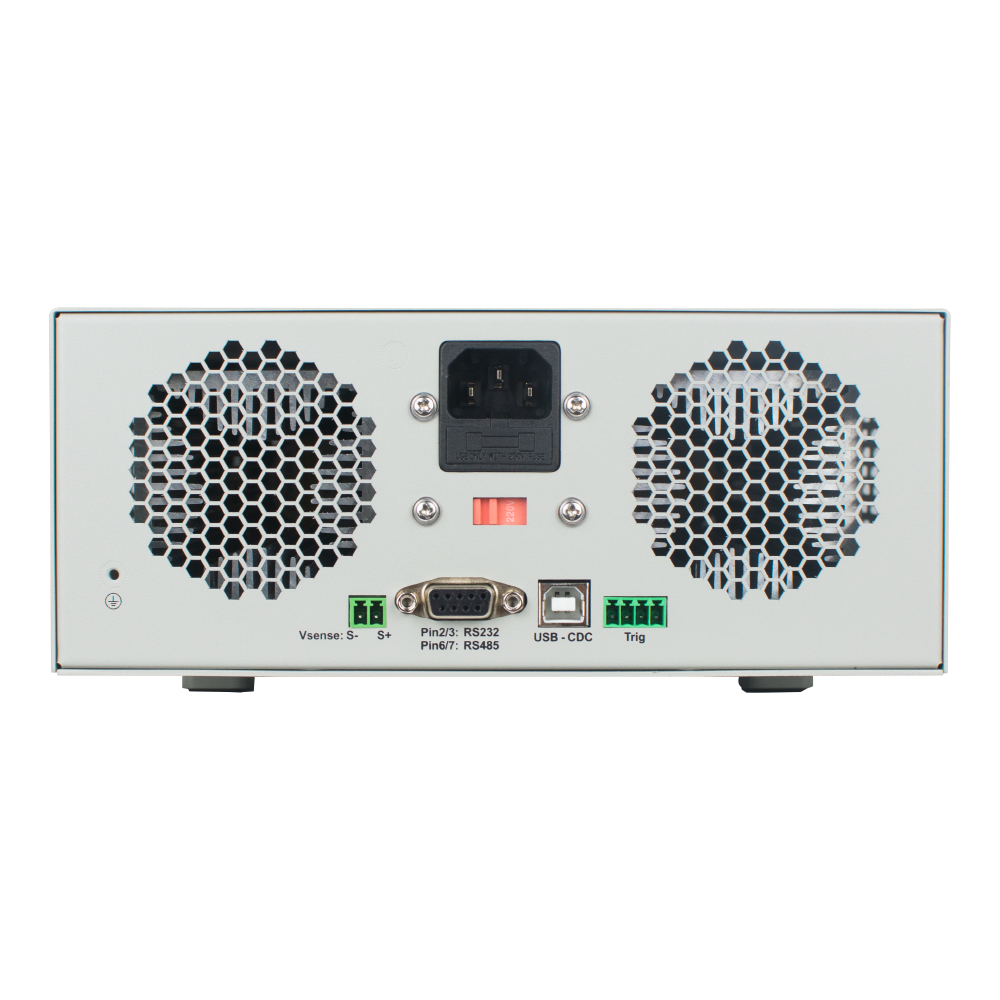

+ Built-in RS232 and USB Device interfaces, supporting SCPI protocol and host computer communication
+ 1/2 2U, standard rack mount size
+ 3.9-inch TFT LCD display

Description

Buy Now

Request Quote

Specifications

Model	OEL8513	OEL8512	OEL8512B	OEL8512C	OEL8511	OEL8511B	OEL8511C
Rated input (Voltage)	0 – 150V	0 – 150V	0 – 300V	0 – 600V	0 – 150V	0 – 300V	0 – 600V
Rated input (Current)	0 – 40A	0 – 40A			0 – 20A
Rated input (Power)	500W	400W			200W
Minimum Operate Voltage	1.1V@40A				0.8V@20A
Range (CV)	0 – 150V	0 – 150V	0 – 300V	0 – 600V	0 – 150V	0 – 300V	0 – 600V
Resolution (CV)	1mV				1mV
Range (CC)	0 – 40A				0 – 20A
Resolution (CC)	1mA				1mA
Range (CR)	0.05Ω – 7.5kΩ				0.05Ω – 7.5kΩ
Range (CP)	500W	400W			400W
Resolution (CP)	10mW				10mW
Dynamic Mode
T1 & T2	0.1ms – 50s				0.1ms – 50s
Rise/Fall Slope	0.01A/ms – 2000A/ms				0.01A/ms – 2000A/ms
Minimum Rise Time	20us				20us
Readback Range (V)	0 – 150V	0 – 300V		0 – 600V	0 – 150V	0 – 300V	0 – 600V
Readback Resolution (V)	1mV
Readback Range (A)	0 – 40A				0 – 20A
Readback Resolution (A)	0.1mA
Readback Range (W)	0 – 500W	0 – 400W			0 – 200W
Readback Resolution (W)	10mW
Protection	Overpower Protection, Overvoltage Protection, Overcurrent Protection, Overtemperature
Short	CC mode, CV mode, CR mode
Interface	RS-232 support SCPI
Optional function	Battery Discharge Test, OCP Test, OPP Test, (Order NO. OEL-T1)
Safety	Complies with European EMC Directive 89/336/EEC for Class A testing and measurement products
Withstand Voltage	500V/DC, 1mA (output to ground); 1.5kVAC, 5mA (input to ground)
Dimension (L/W/D)	215 x 88 x 375 mm
Weight (KG)	5				4.2

Support

OWON Battery Test System — Download

Quick Guide for OEL85 Series DC Electronic Load — Download

PC Software for OEL85 Series DC Electronic Load — Download

Programming Manual for OEL85 Series DC Electronic Load — Download

User Manual for OEL85 Series DC Electronic Load — Download

Product Details

Accessories

The accessories subject to final delivery.

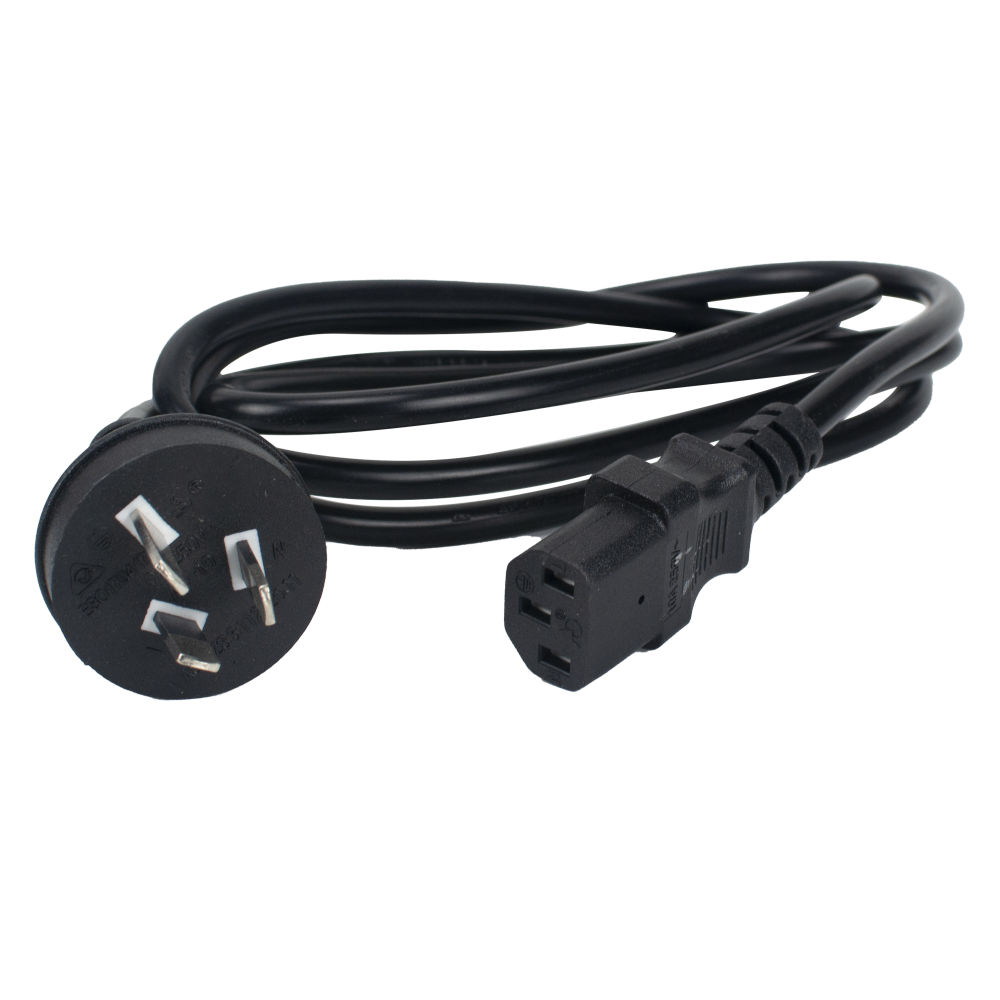

Power Cord

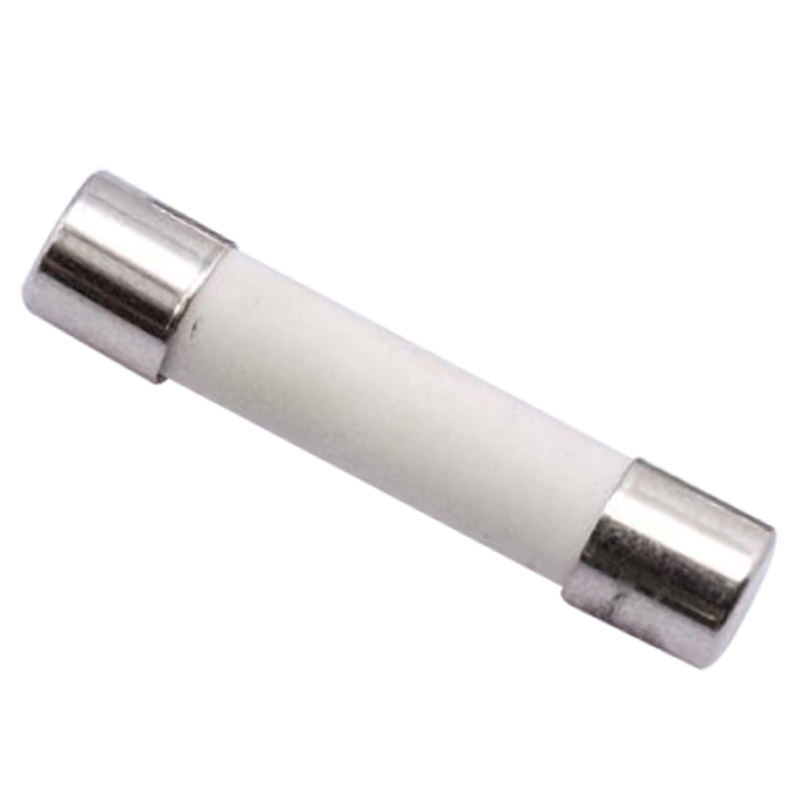

Fuse

User Manual

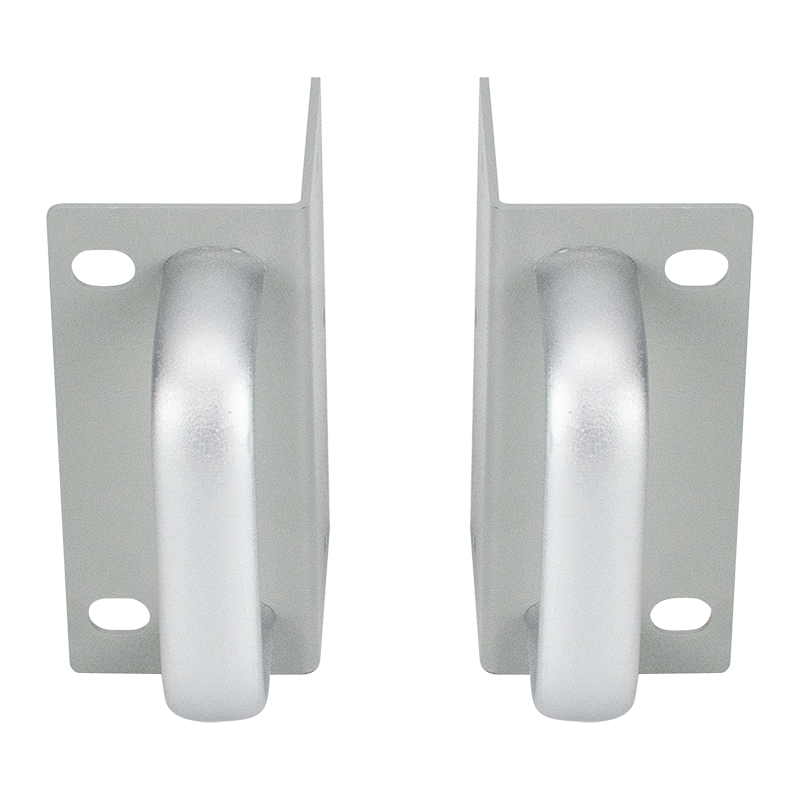

Handle (optional)

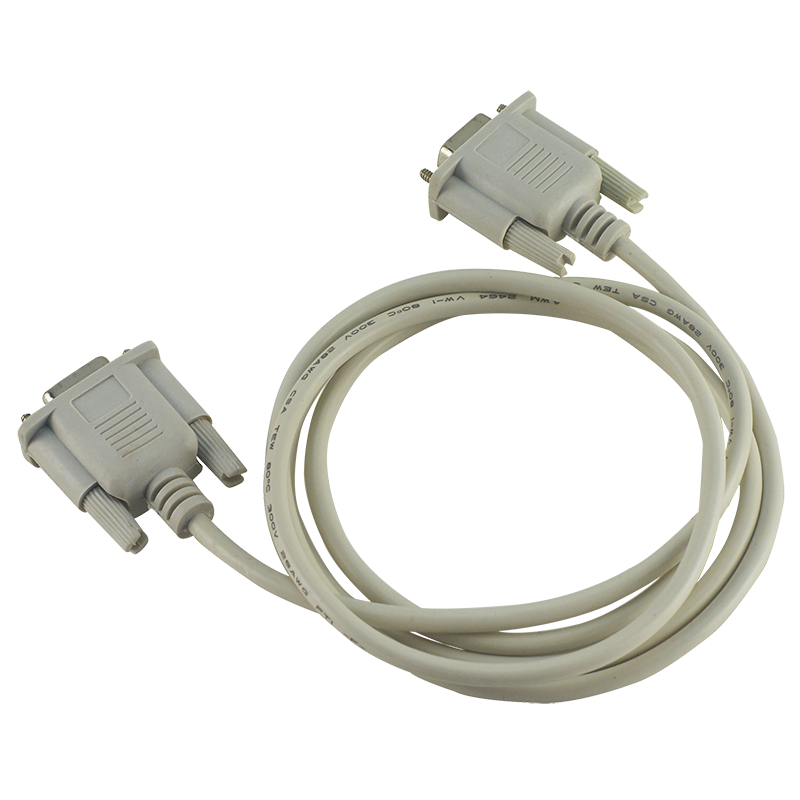

RS232 Com Cable (optional)

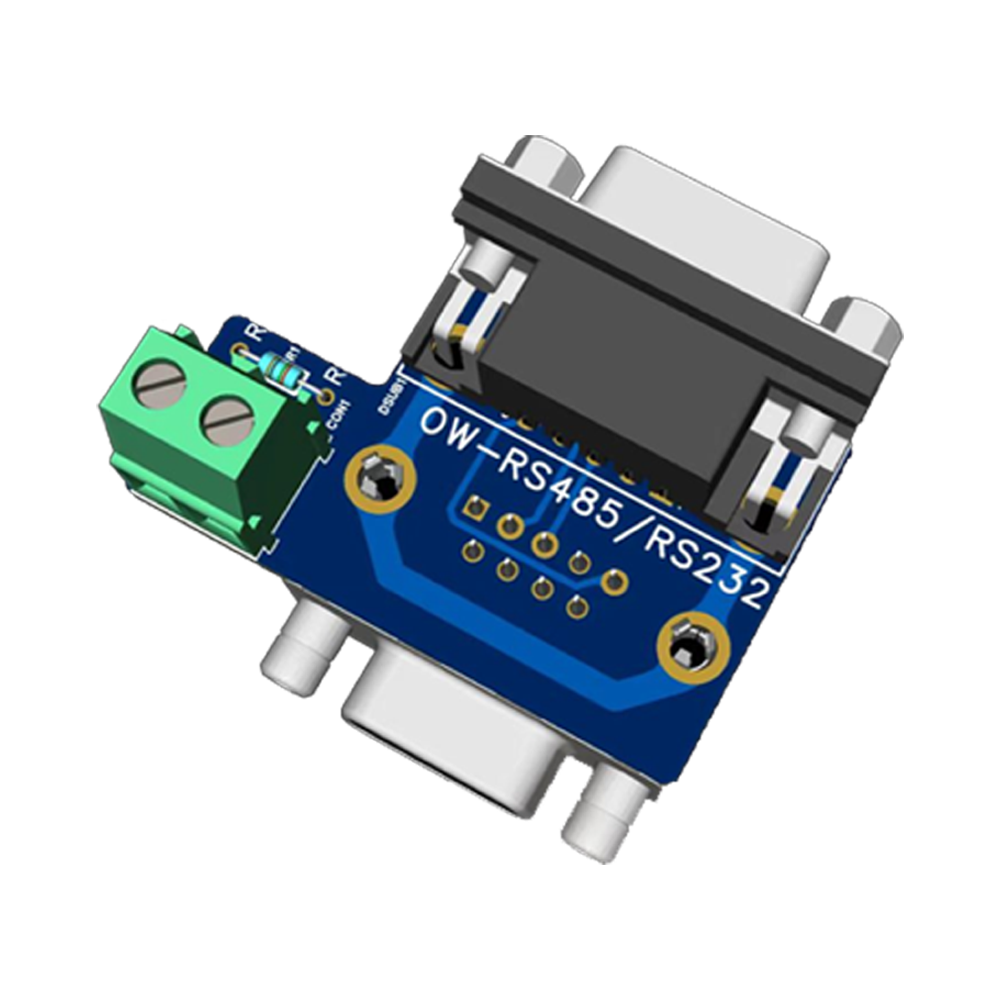

Parallel Module (optional)

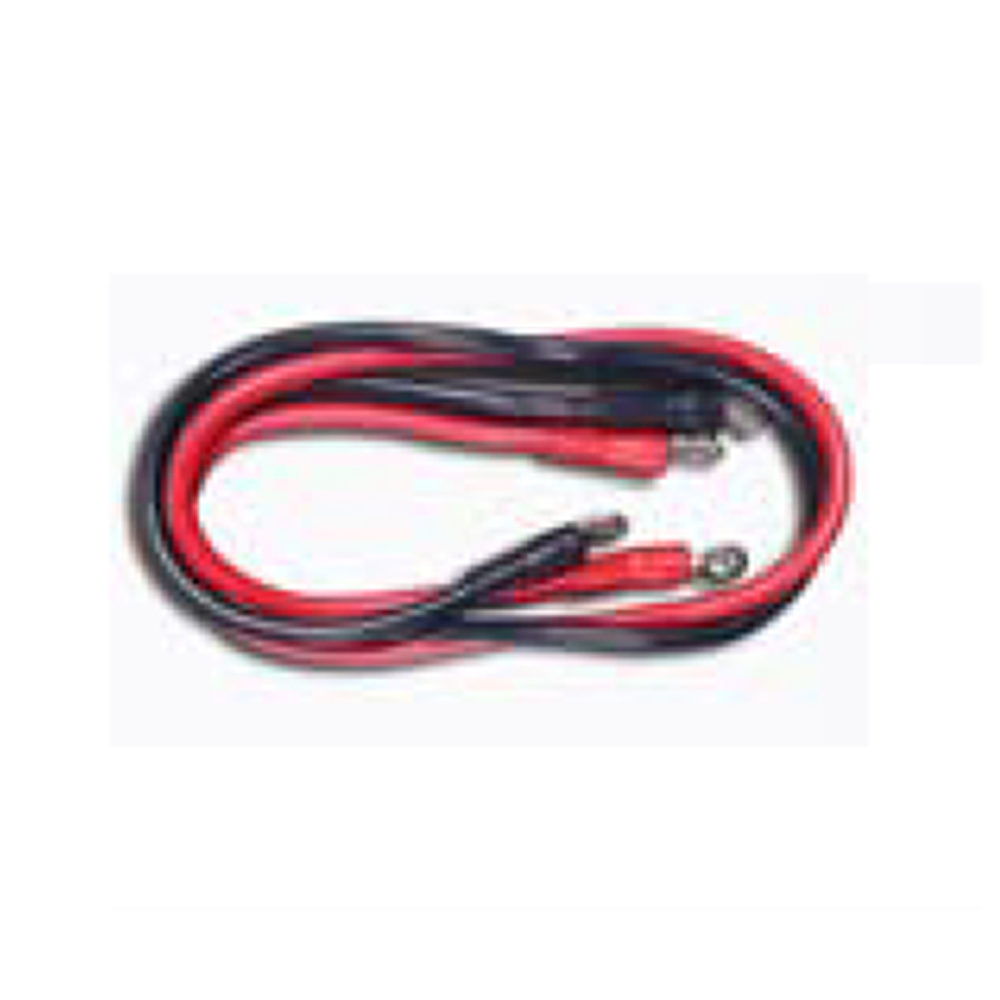

Test Leads (20A) (optional)
